Limit Out Performance

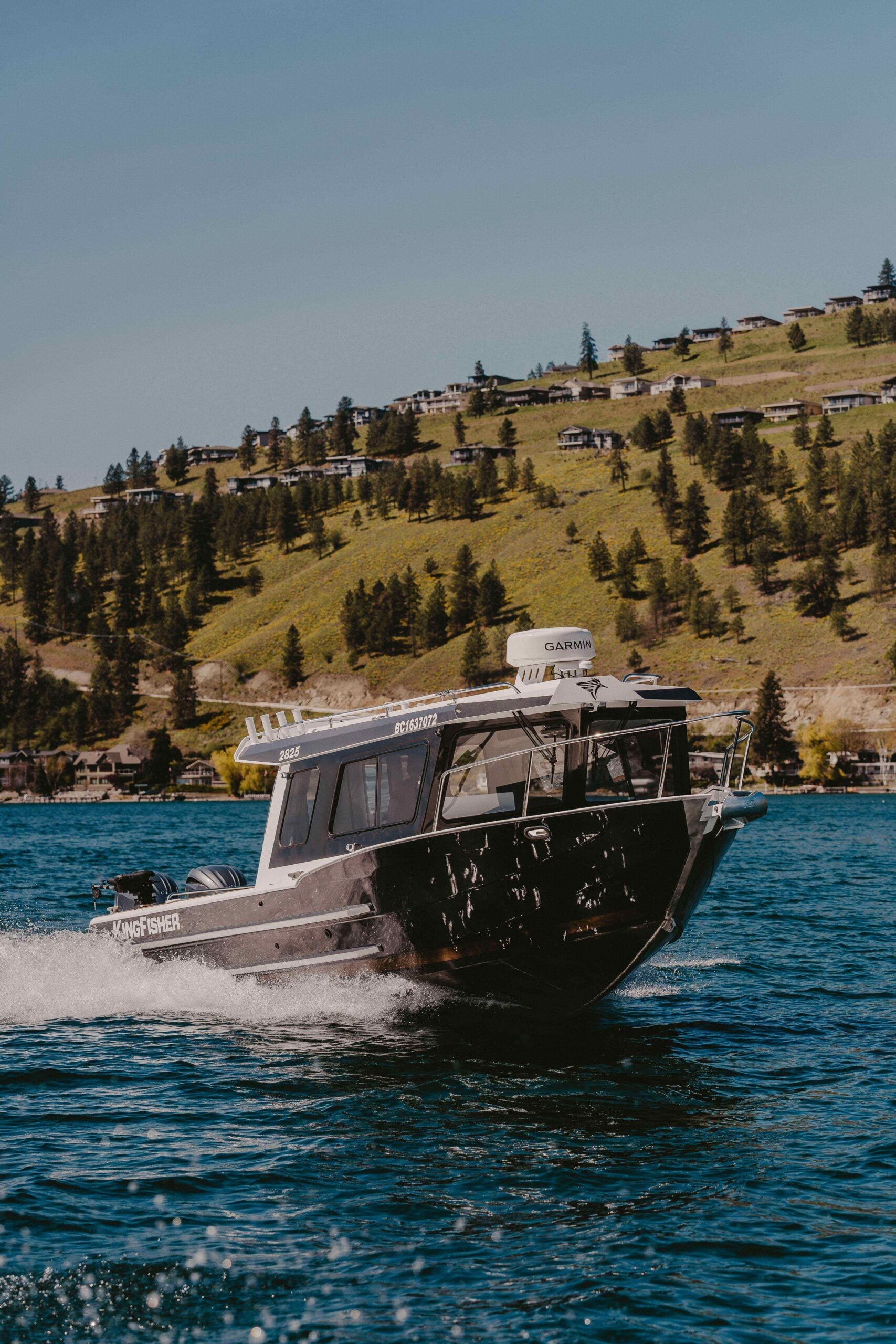

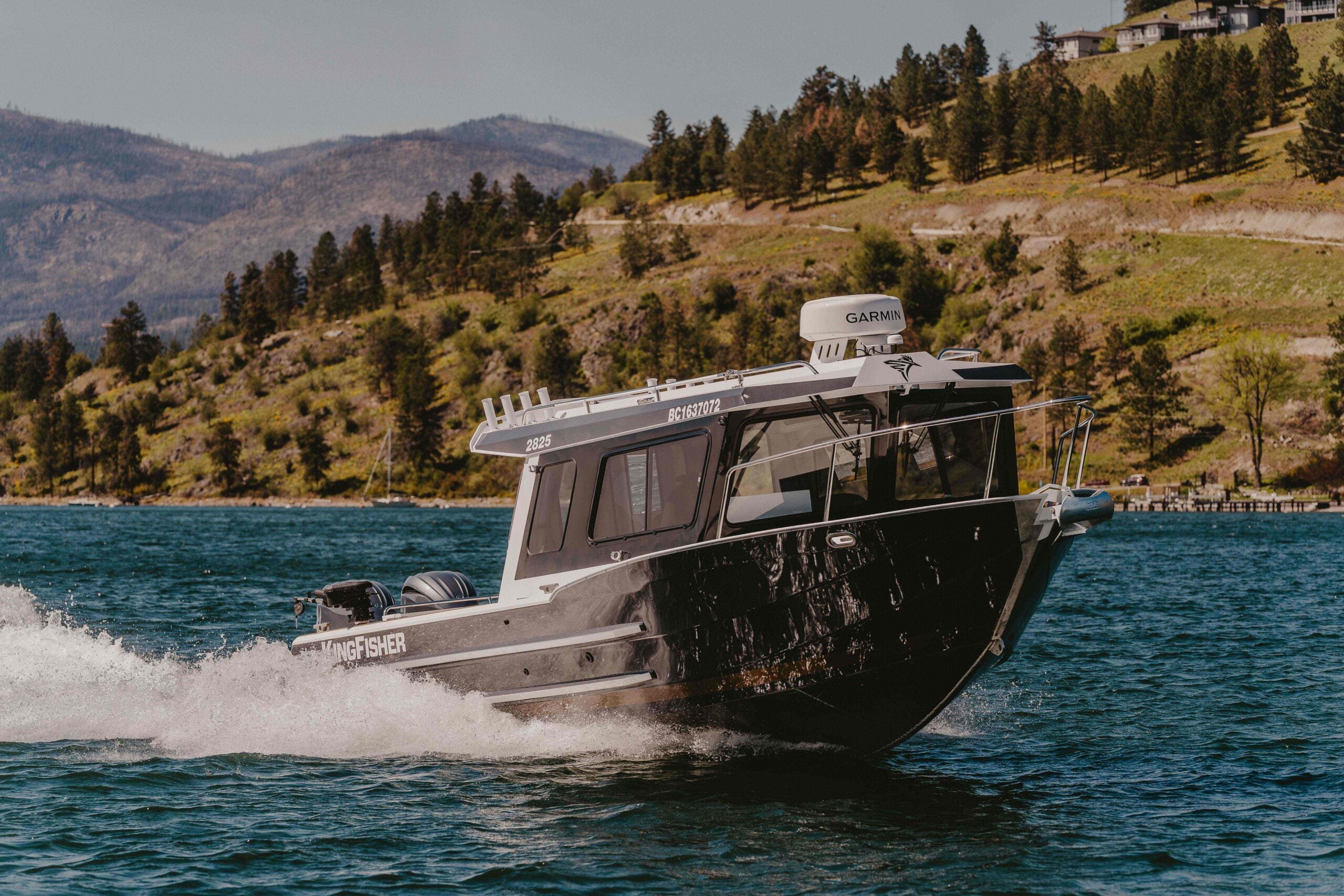

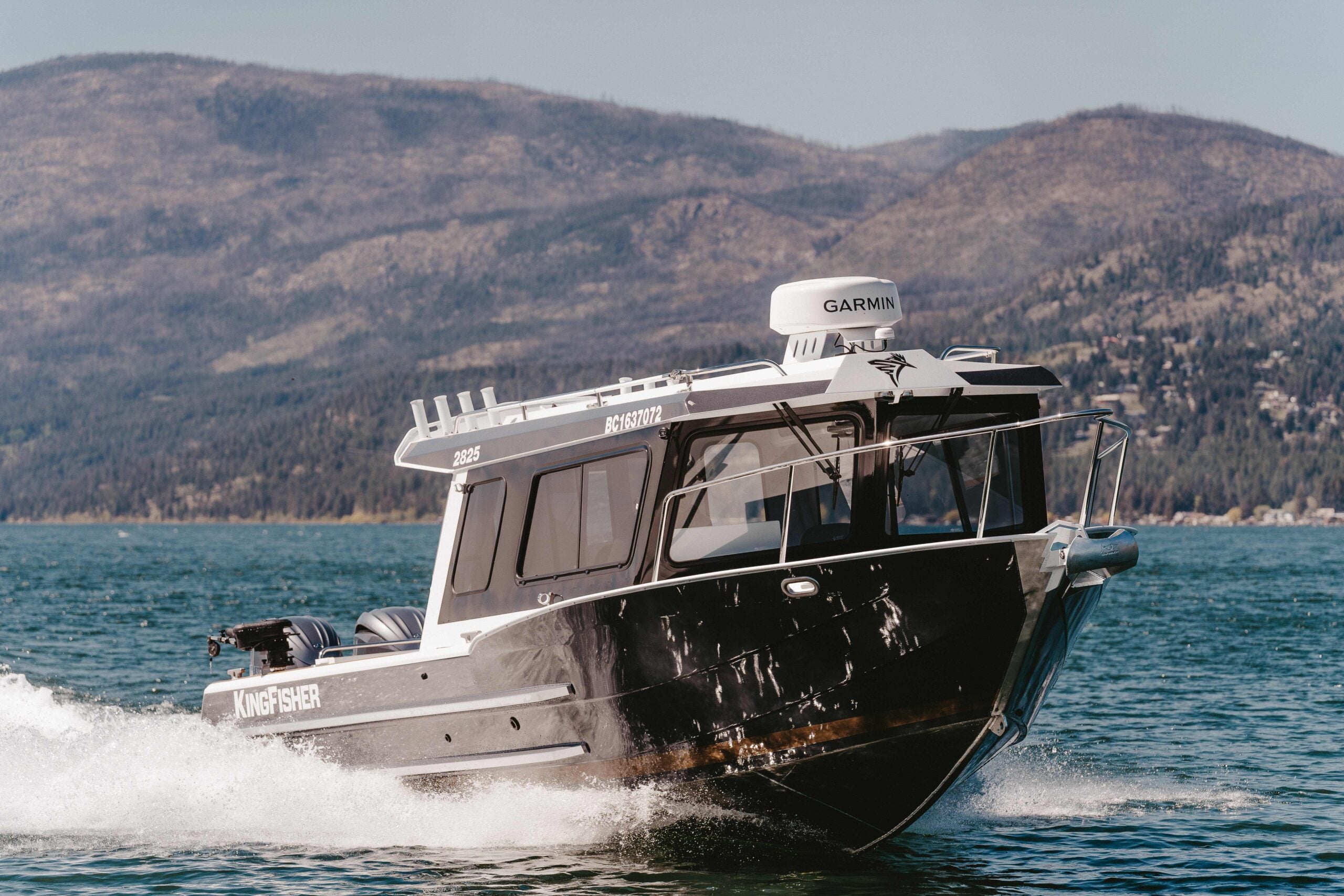

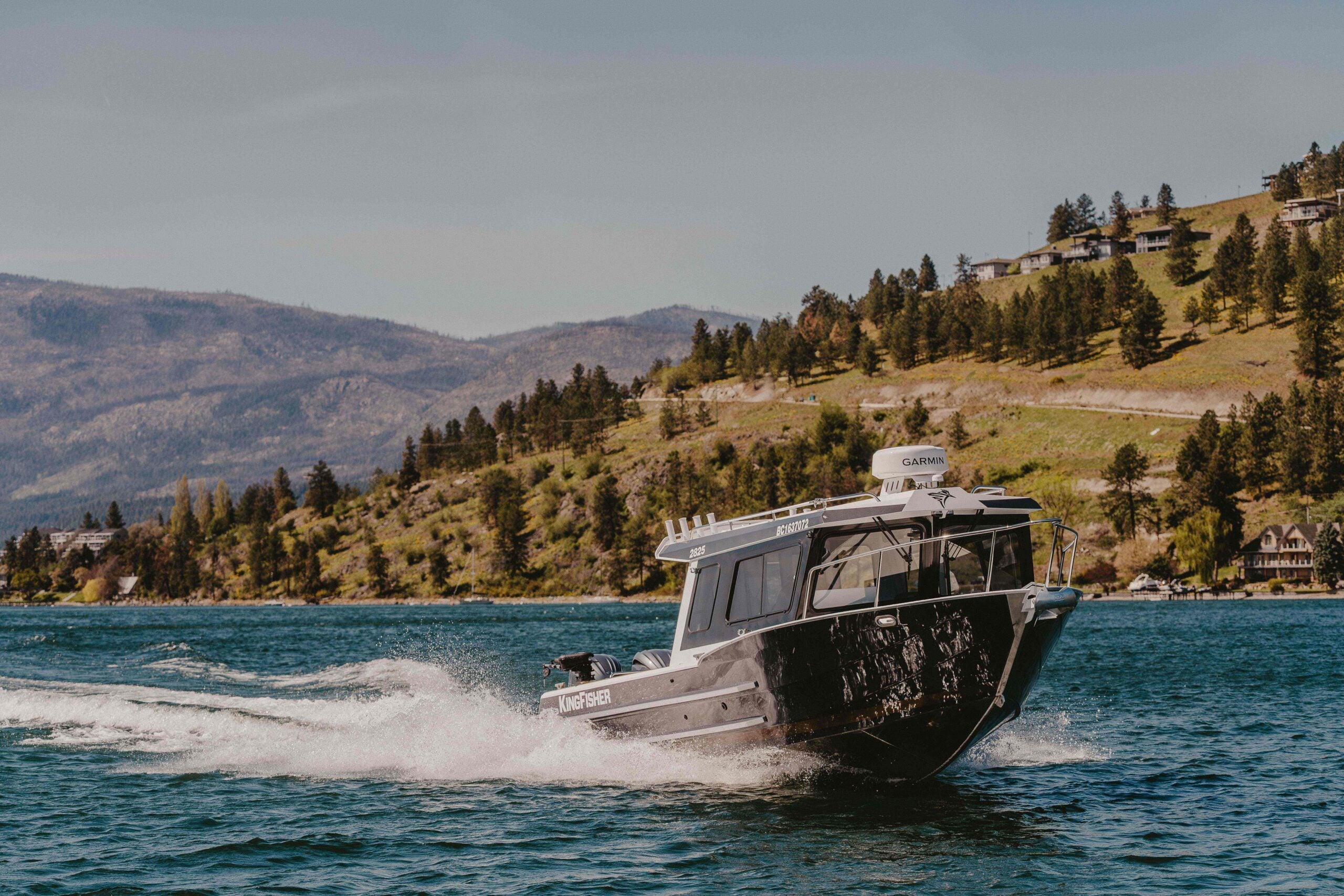

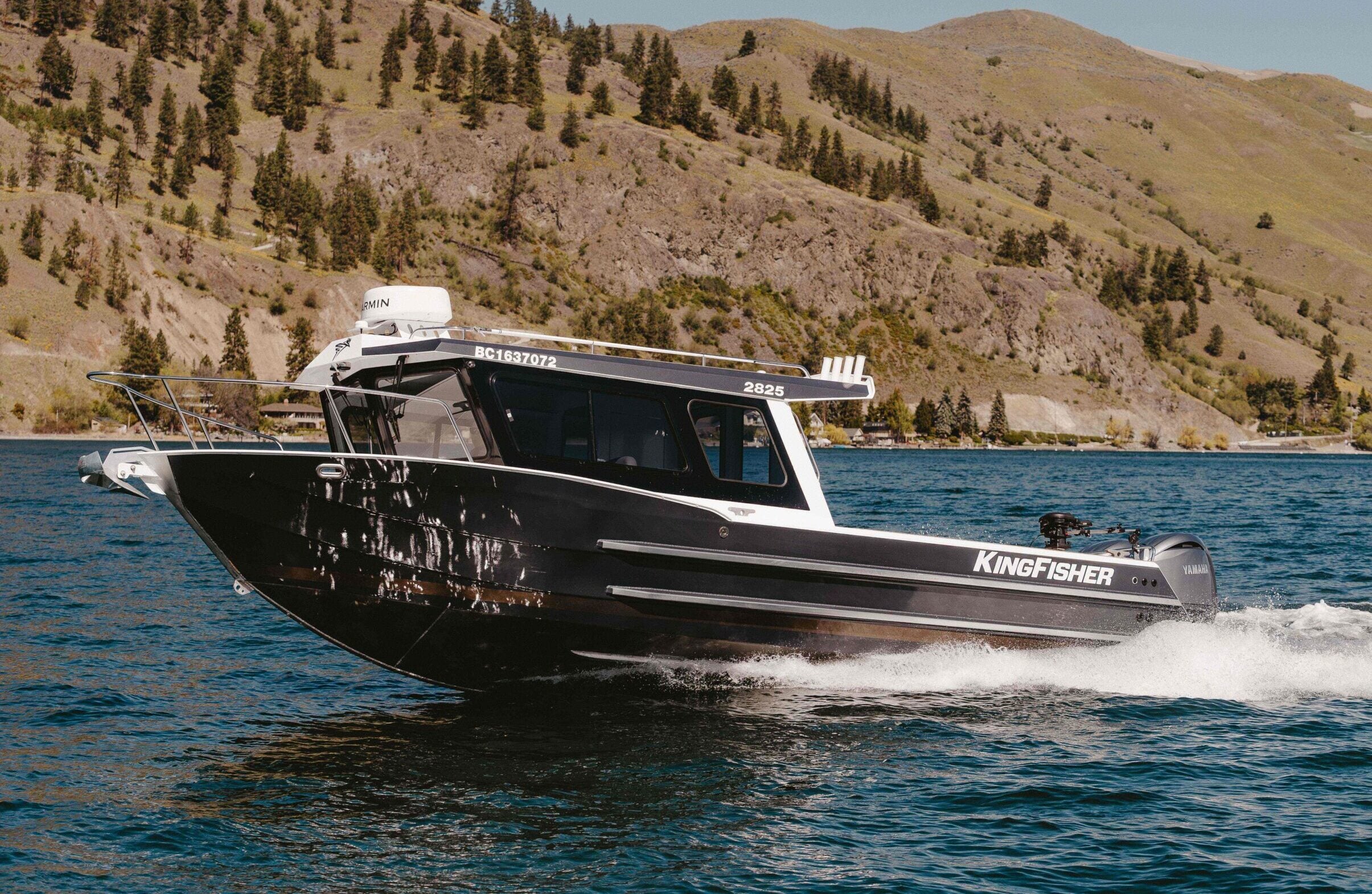

The KingFisher 2825 Coastal Express is a heavy-gauge welded aluminum pilot house fishing boat engineered with direct input from fishing guides and serious anglers who fish to limit out. At 29′ with an 8’6″ beam and up to 400HP, the 2825 Coastal Express delivers the power, deck space, and fishability you need to pursue bigger fish in coastal and open-water conditions no matter what the forecast says.
At the heart of every 2825 Coastal Express is KingFisher’s proprietary Pre-Flex® hull technology. This trademarked process creates a stronger, lighter hull with a variable 16° deadrise that cuts through chop and delivers a smooth, fast-planing ride even in demanding coastal conditions. Combined with heavy-gauge all-welded aluminum construction, a 0.190 bottom thickness, and 0.160 sides, the 2825 Coastal Express is built to handle serious water without compromise.

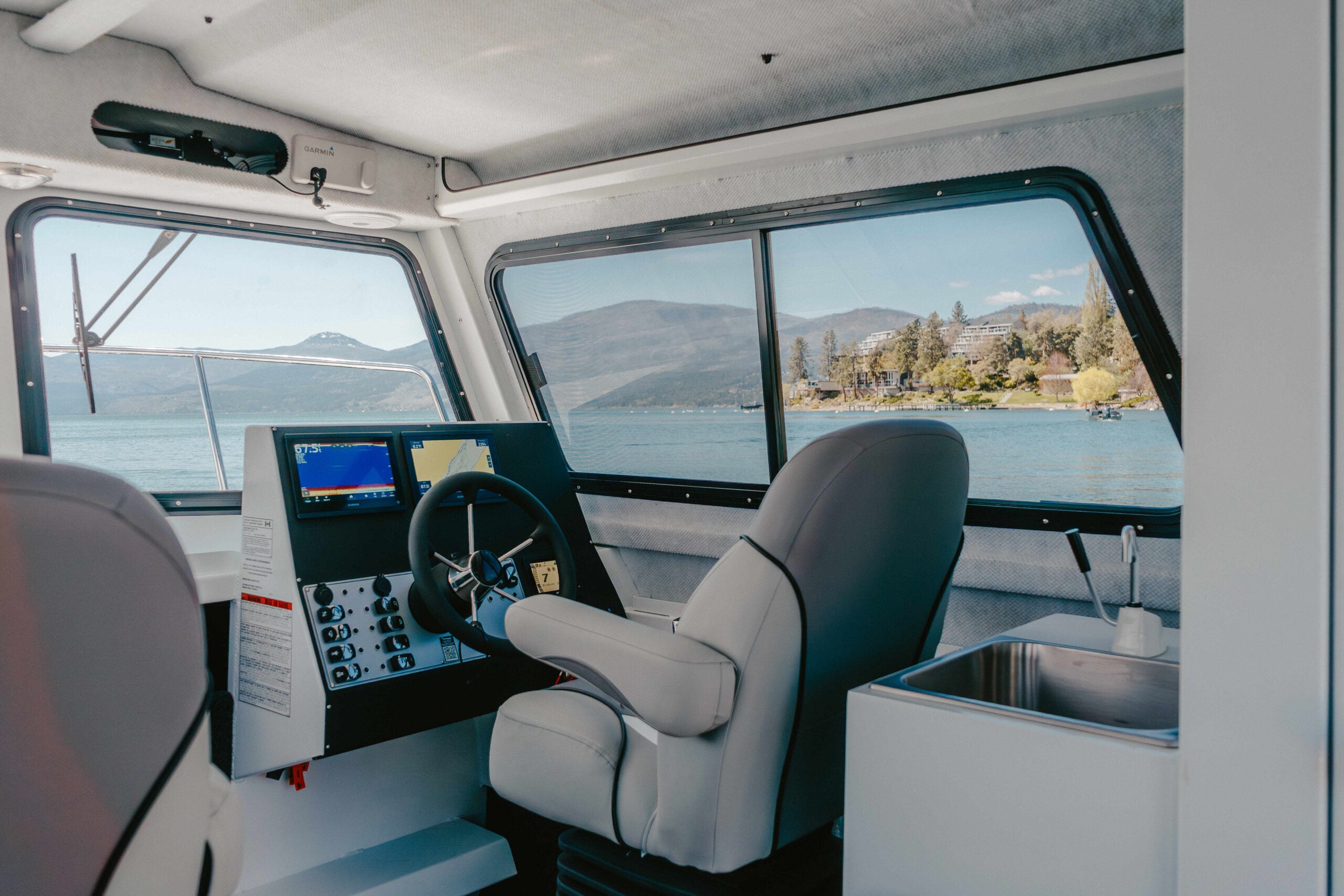

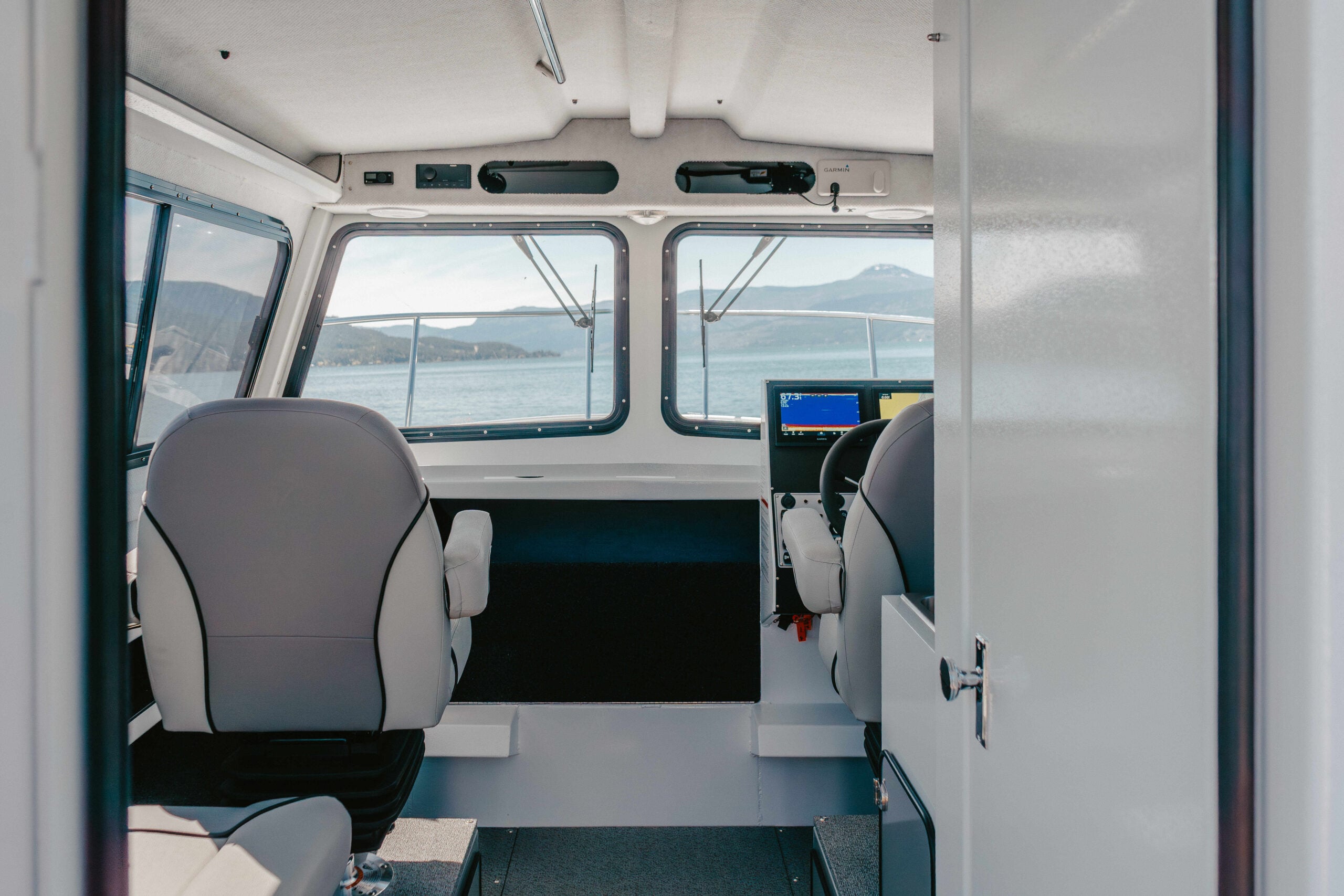

The 2825 Coastal Express’s extended transom pilot house design sets it apart from conventional hardtop fishing boats. With 8′ of cabin length and 6’2″ of headroom, there’s genuine standing room inside — enough space to run comfortably to the grounds, stay protected in changing weather, and arrive ready to fish. High sides and a 3’1″ side height provide the security and confidence you need when conditions get serious.

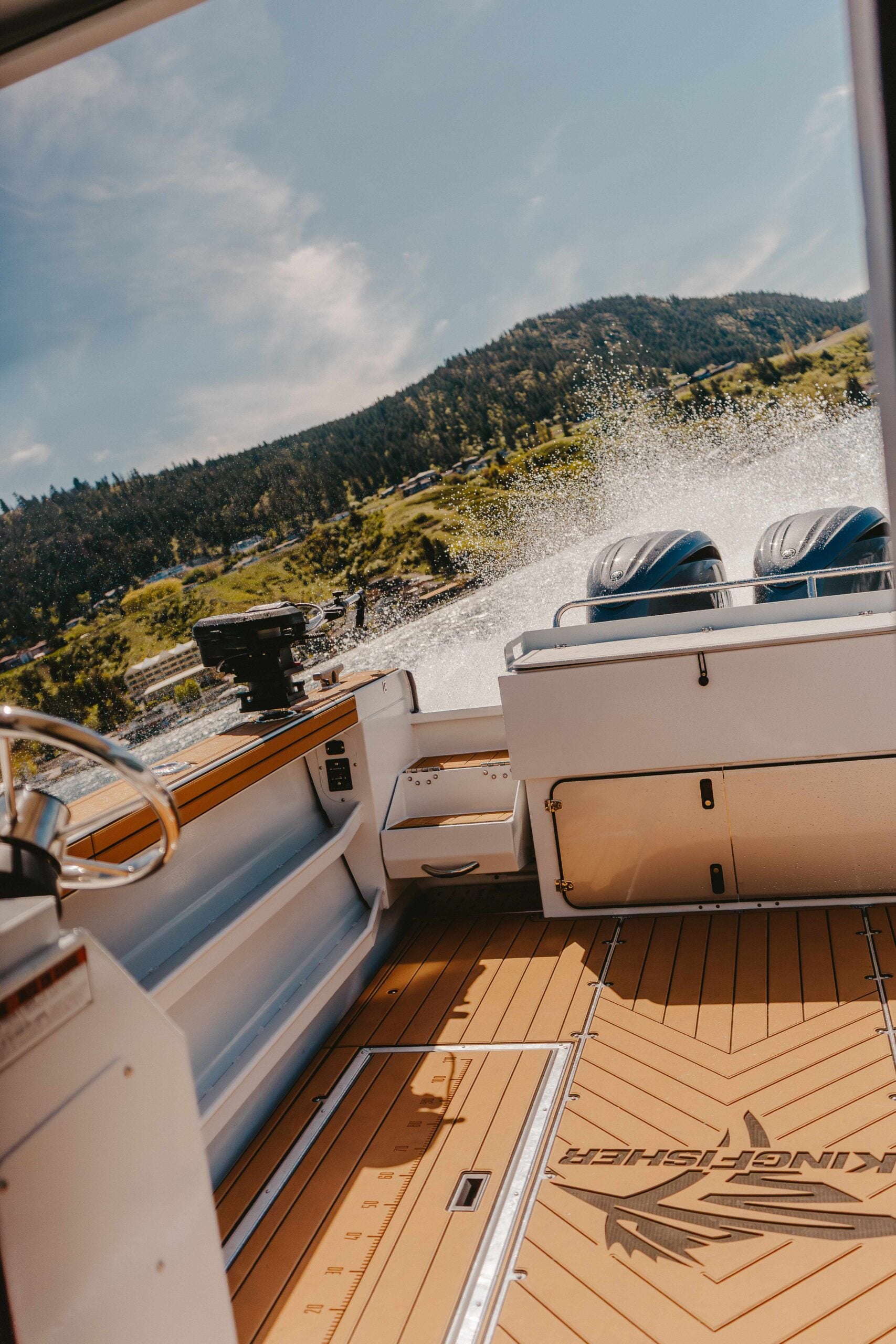

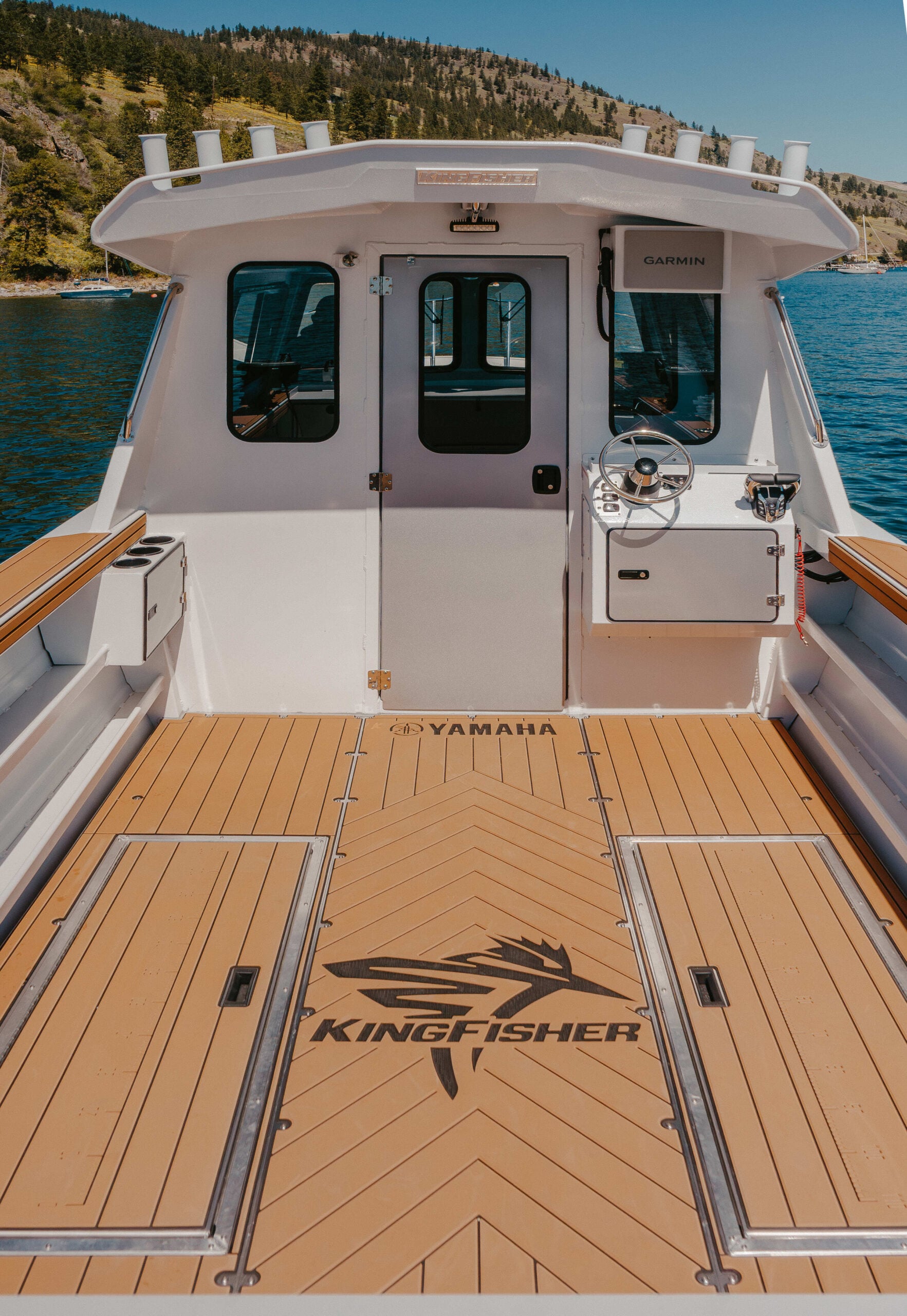

Purpose-built for anglers who fish to the limit, the 2825 Coastal Express features an 83 USG cockpit floor fish locker, a 35 USG transom fish locker, and an 11′ aft cockpit purpose-designed for working the deck efficiently. With an 85 USG fuel capacity for long runs to remote fishing grounds, an approximate dry weight of 4,050 lbs, and a 7′ bottom width delivering exceptional stability at anchor and while fighting fish, this boat was built for one thing — to catch bigger fish.
The KingFisher 2825 Coastal Express is backed by a lifetime hull warranty and supported by an authorized dealer network across North America. Build yours today or find a KingFisher dealer near you to arrange a demo on the water.
LENGTH
29'
MAX HP
400
BEAM
8' 6"
Starting at: $179,679
Estimated total includes base boat, engine, pre-rig, controls, PDI, trailer & freight. Price does not include optional packages, tax, prep, or dealer discounts. Current pricing is based on 2026 model year, please see your local dealer for availability and additional pricing detail.
Specifications
- SeriesCoastal
- Model2825 Coastal Express
- Length Overall29'
- Beam8' 6"
- Maximum HP400
- Cabin Length8'
- Cabin Headroom6' 2"
- Transom Fish Locker35 USG
- Transom Weight Limit1200 lbs

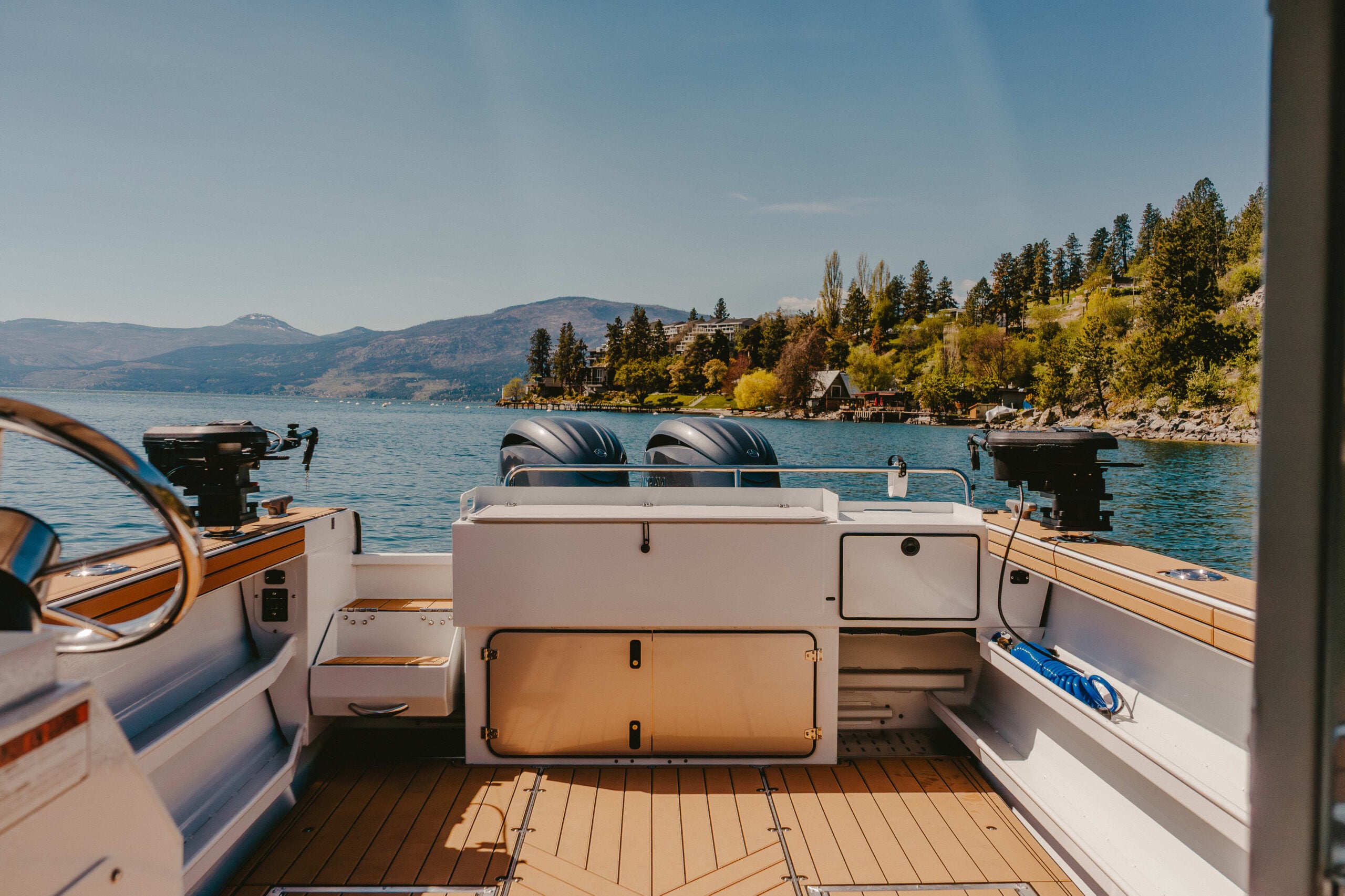

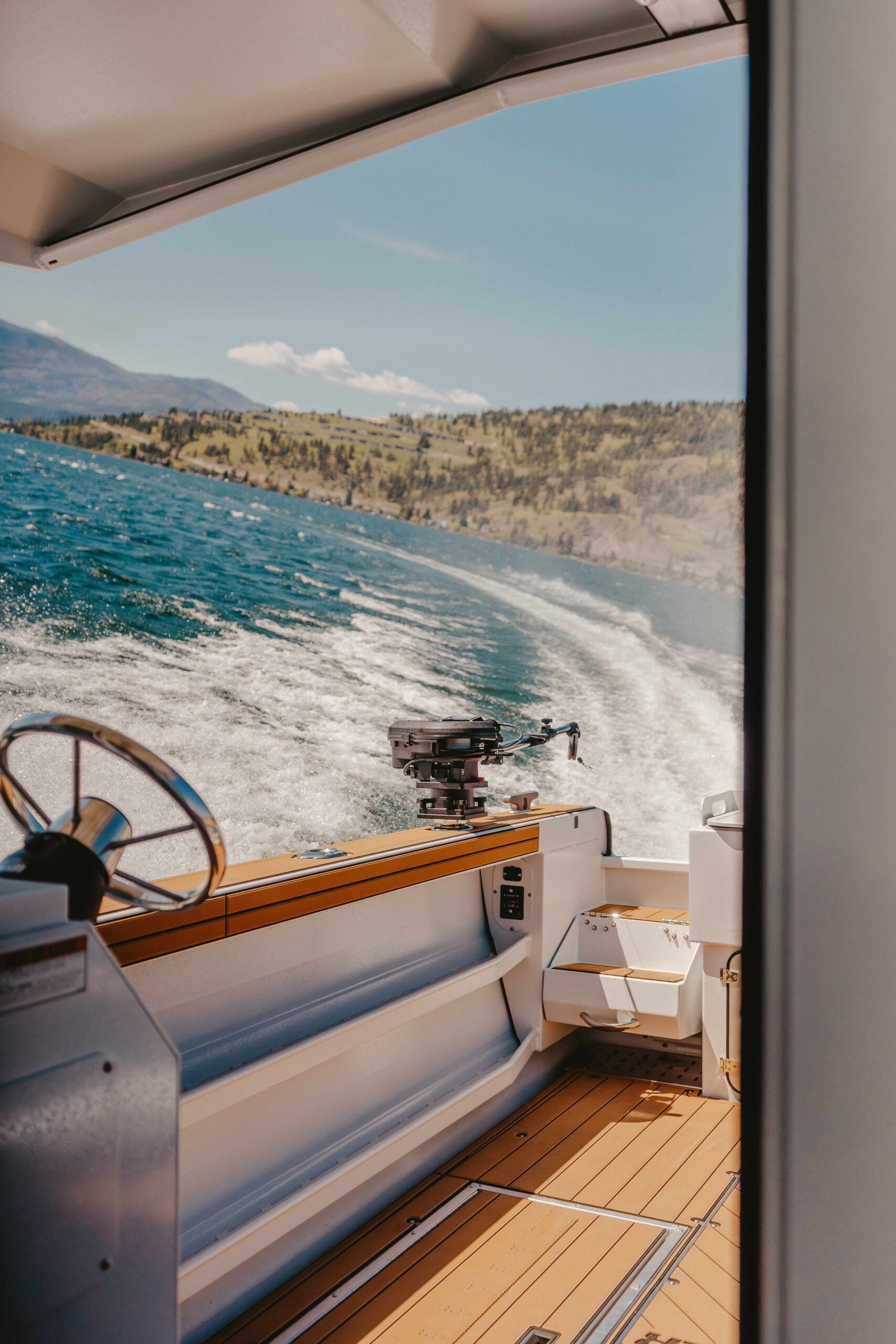

- Aft Cockpit length11'
- Cockpit Floor Fish Locker83 USG
- Approx Dry Weight4050 lbs
- DeadriseVariable 16°
- Fuel Capacity85 USG / 322 L
- Side0.160"
- Side Height3' 1"
- Bottom 0.190
- Bottom Width 7'
Standard Hull Features
- Exclusive Pre-Flex® hull technology
- Full length performance HD delta keel
- Engineered full length reverse chines
- Performance fully welded lifting strakes and heavy duty keel guard
- Formed compound angle box stringers / full length
- Single piece hull sides integrated into the swim platform with upswept bow and wide formed flat gunnels
- Bow anchor rope locker with hawse pipe and welded aluminum anchor roller
- Foul weather bow coamings
- Welded aluminum hard top with overhead forward & side storage trays

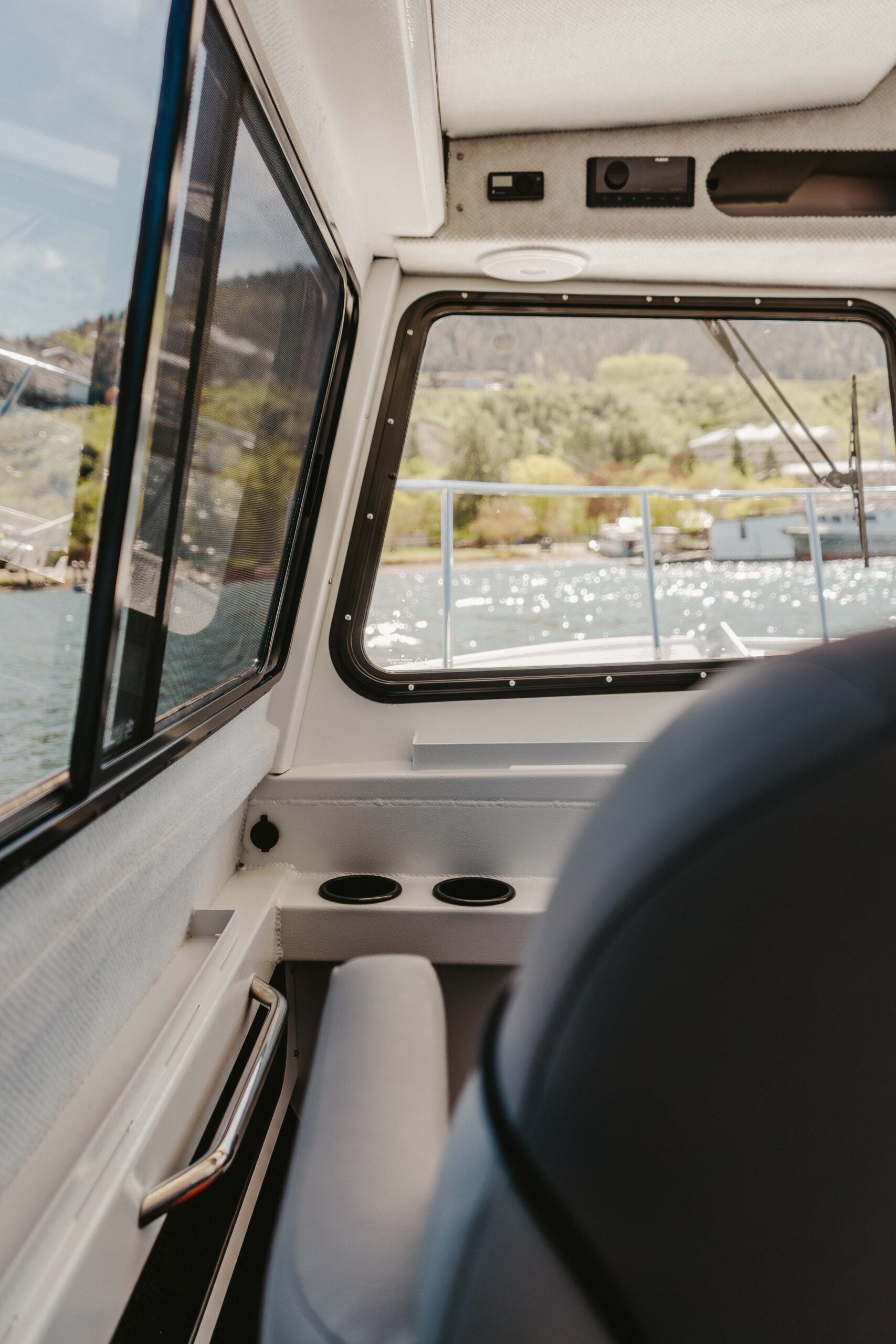

- Forward sloping windshield with aluminum framed tempered glass front windows, 2 aluminum framed sliding side windows with screens plus 2 fixed aft side windows

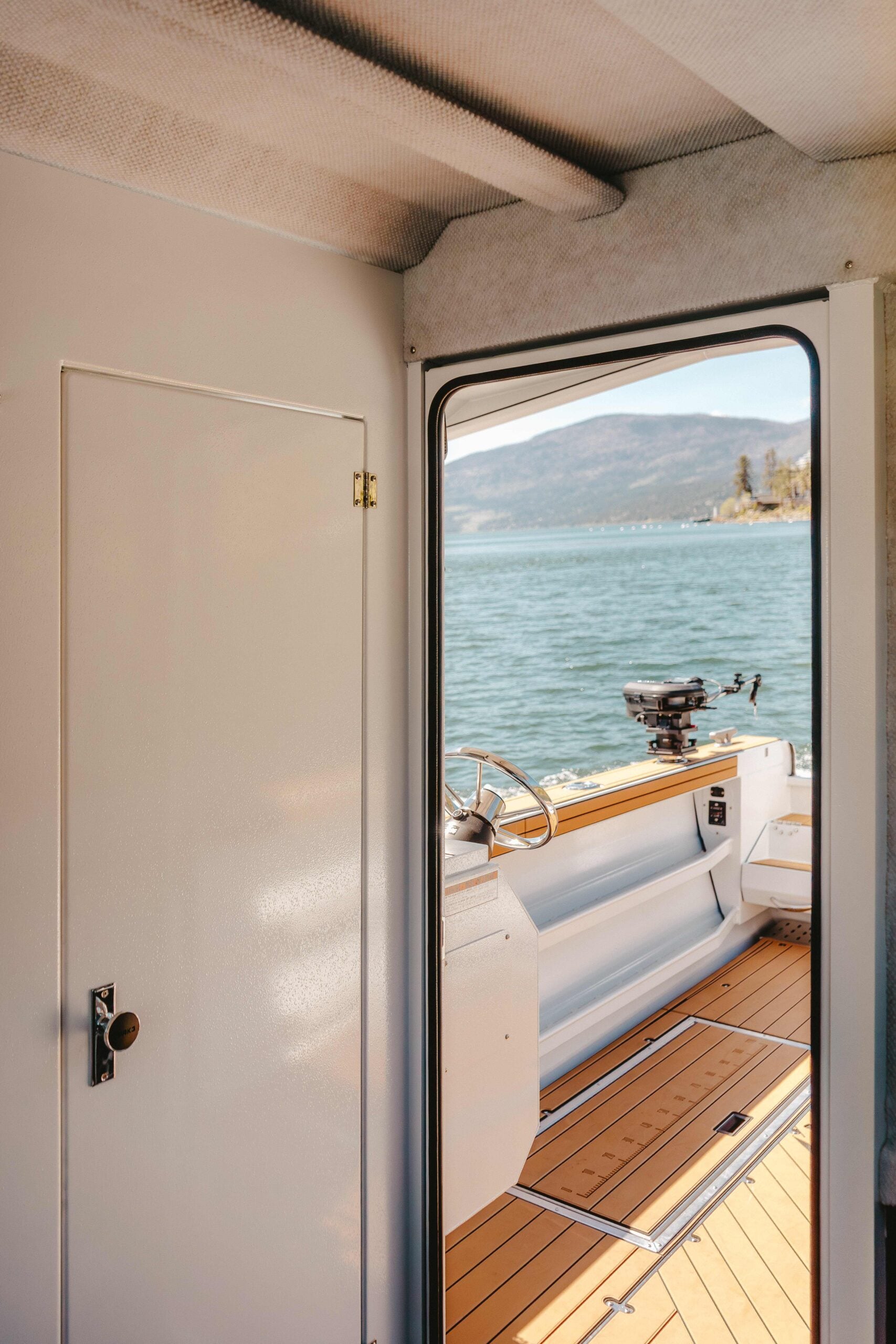

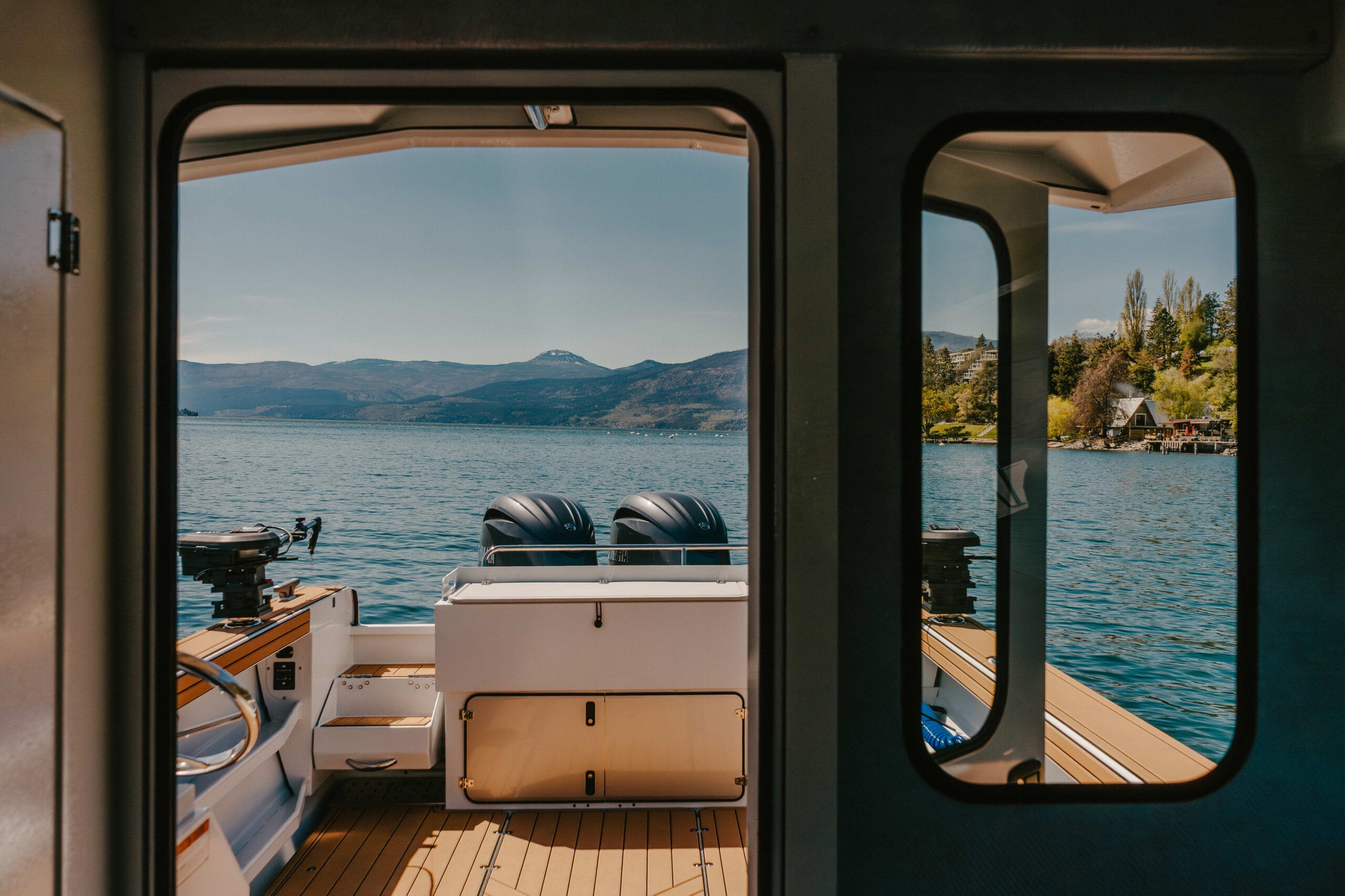

- Welded aluminum 3 window cabin bulkhead with locking door
- Integral aluminum cockpit roof extension
- Full width integrated external motor bracket with transom platform

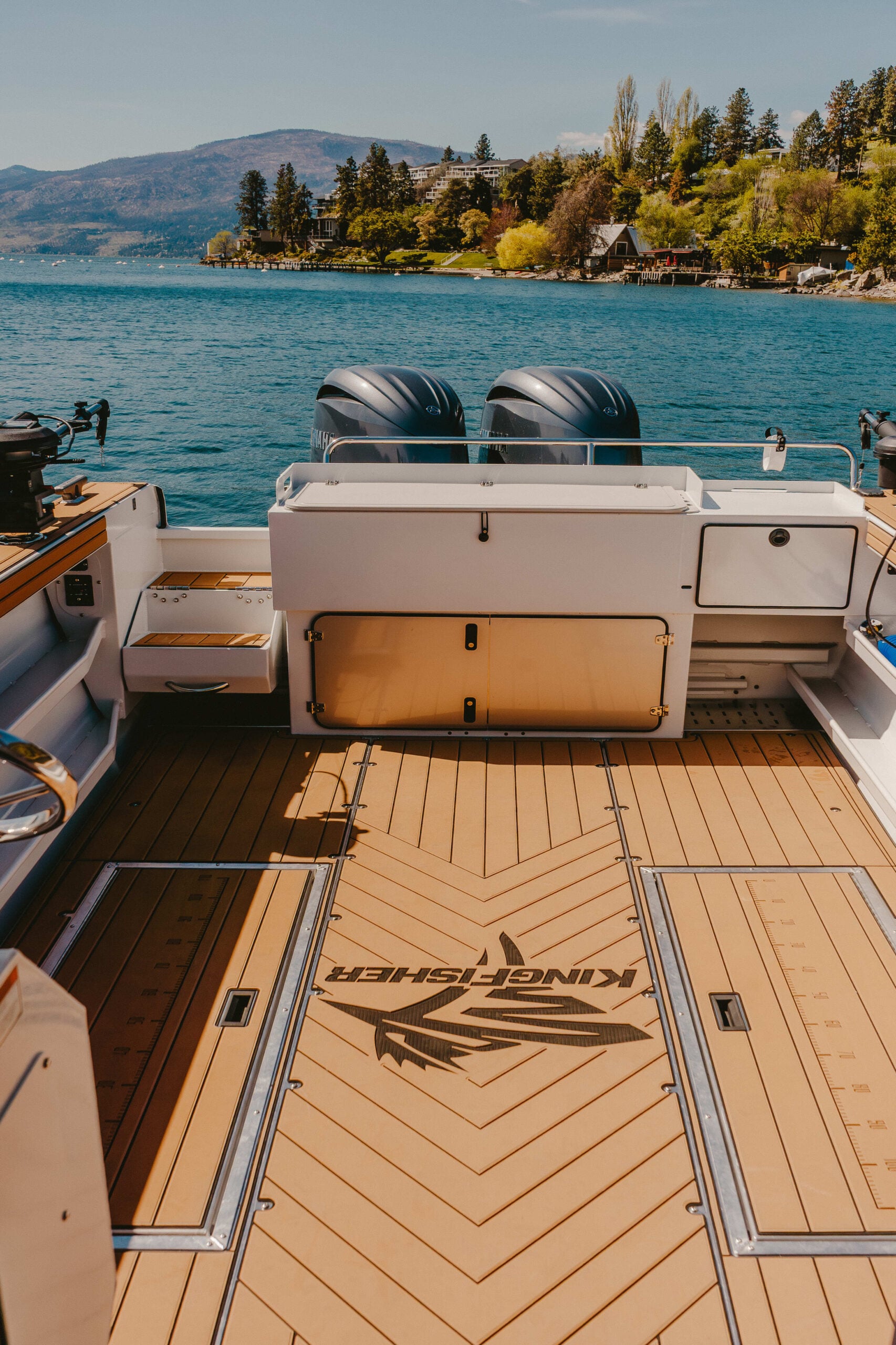

- 2 aft cockpit floor fish lockers with pump outs

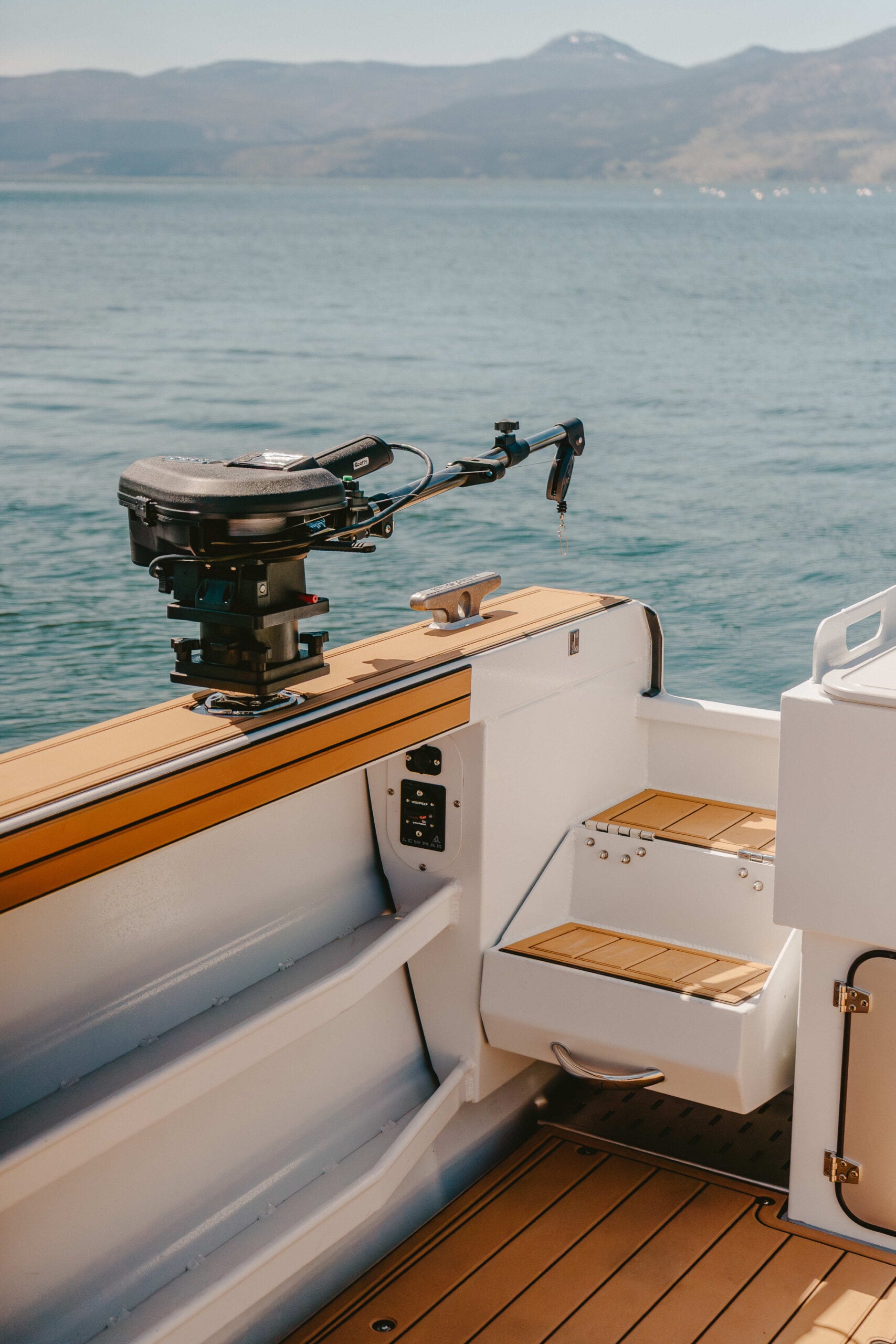

- Folding transom step-thru

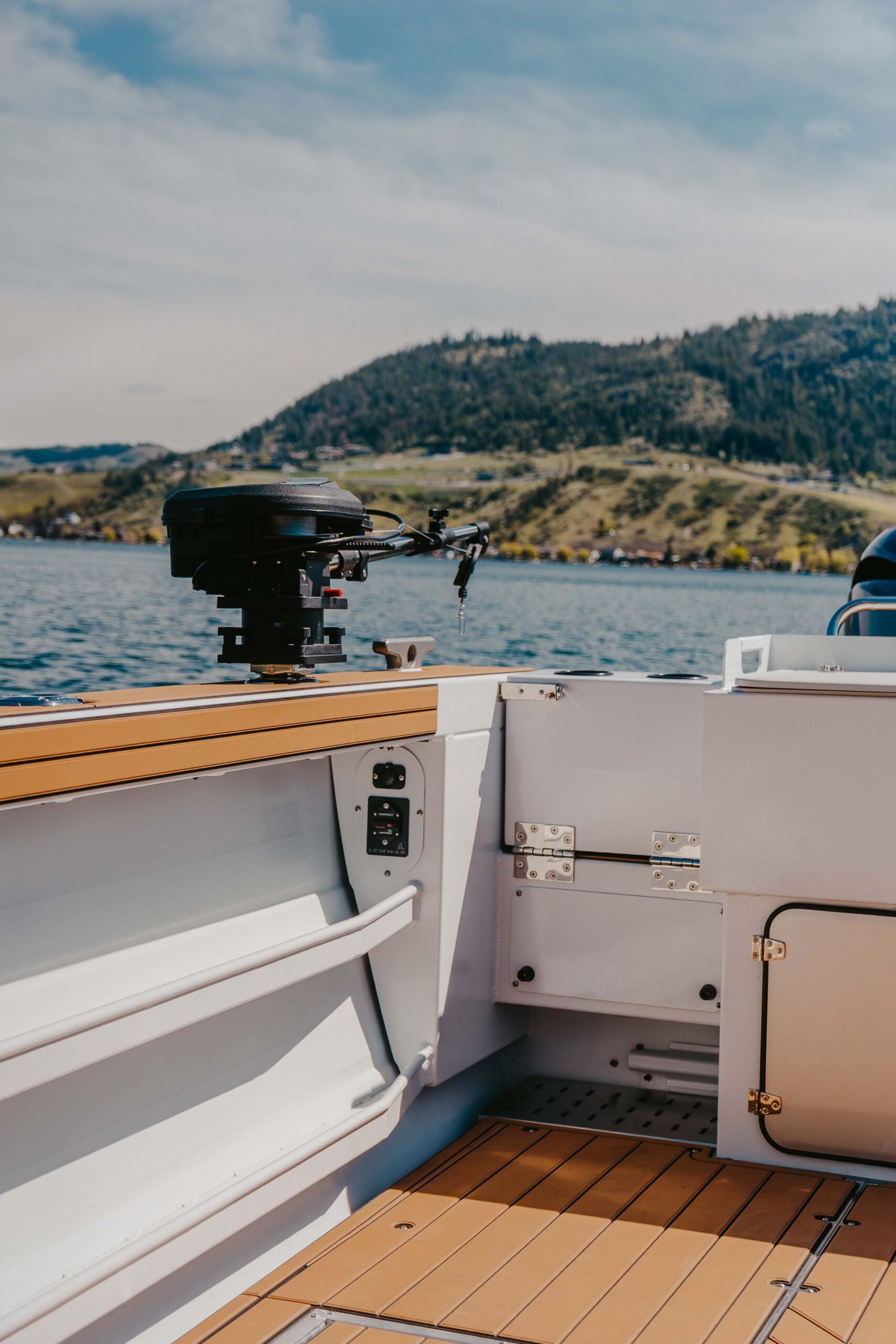

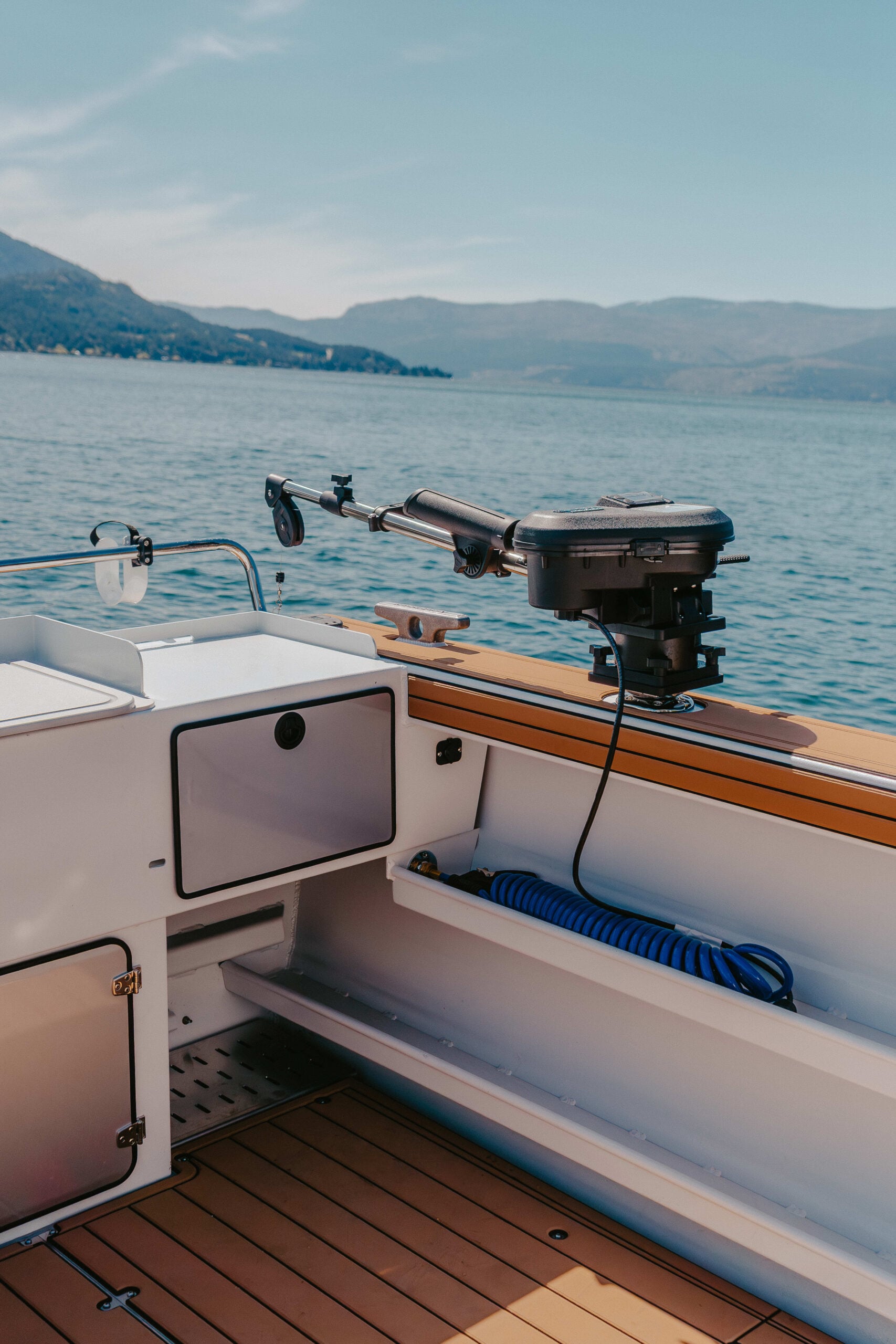

- Transom fish locker with cutting board and fish rail
- Aft cockpit tackle drawer
- 4 full length cockpit side storage trays
- Welded bow eye with stainless sleeve and 2 welded aluminum stern eyes
- 5 x 9″ heavy duty welded bow and stern cleats
- Welded transducer mounting brackets
- Closed cell polyurethane foam for sound dampening
Trailer / Standard with Boat Package
- 7500 lb galvanized tandem-axle bunk trailer, surge disc brakes, alum wheels
Standard Paint & Graphics
- Speckle painted gunnels, cabin walls & interior with color matched painted roof accent
- Exterior full side paint color choice with KingFisher standard decal
Standard Exterior Features
- Stainless offshore bow rail & aft cockpit grab rails
- Bolt on sacrificial hull anodes
- Shipping protection cover
- Heavy Duty Stainless steel reboarding ladder
Standard Interior Features
- Easy care marine vinyl floor

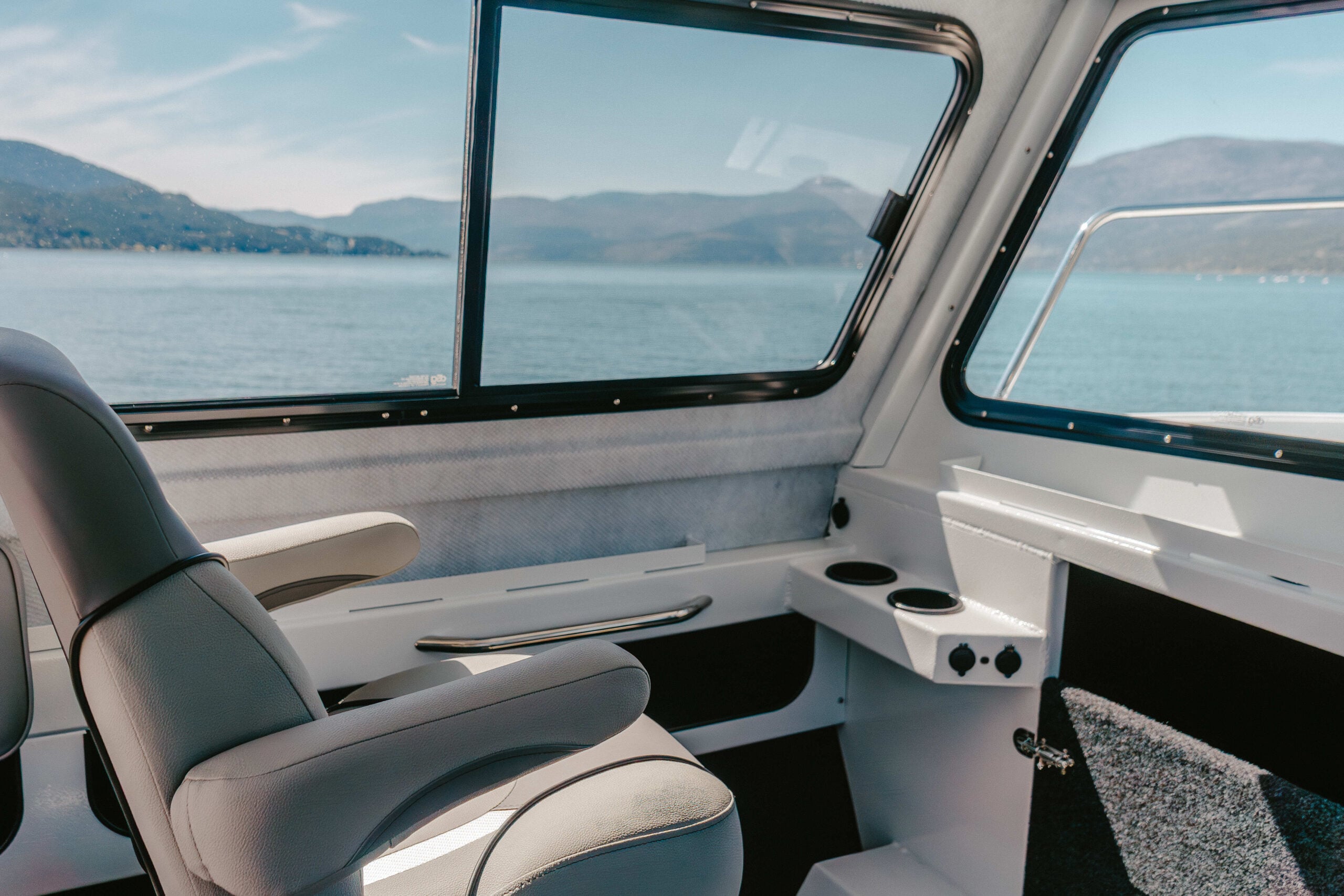

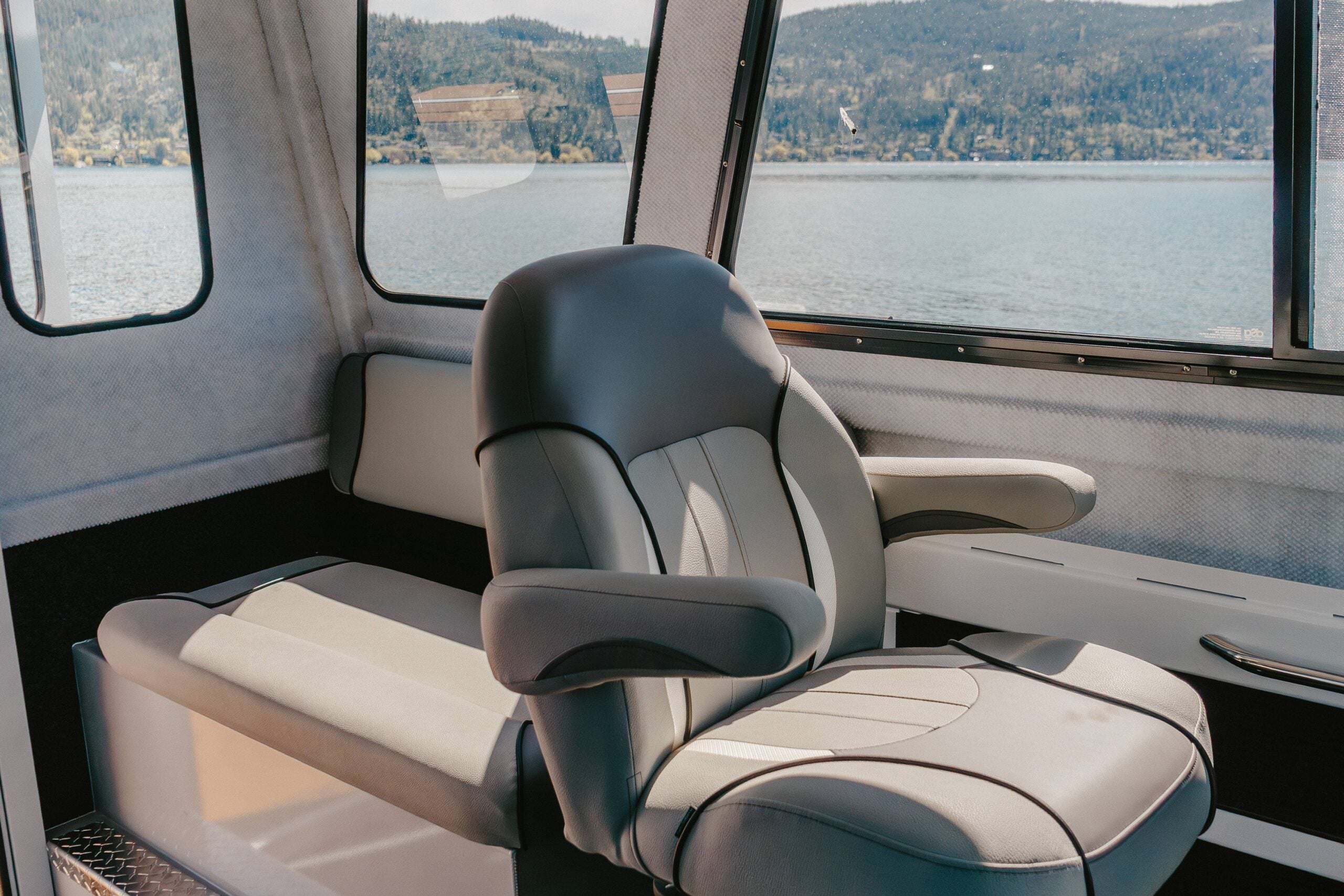

- 2 Fishmaster XL seats on Silver painted aluminum
- storage boxes with drawers
- Speckle painted interior with carpeted lower hull sides
- Cabin in-floor storage locker
Standard Systems Features

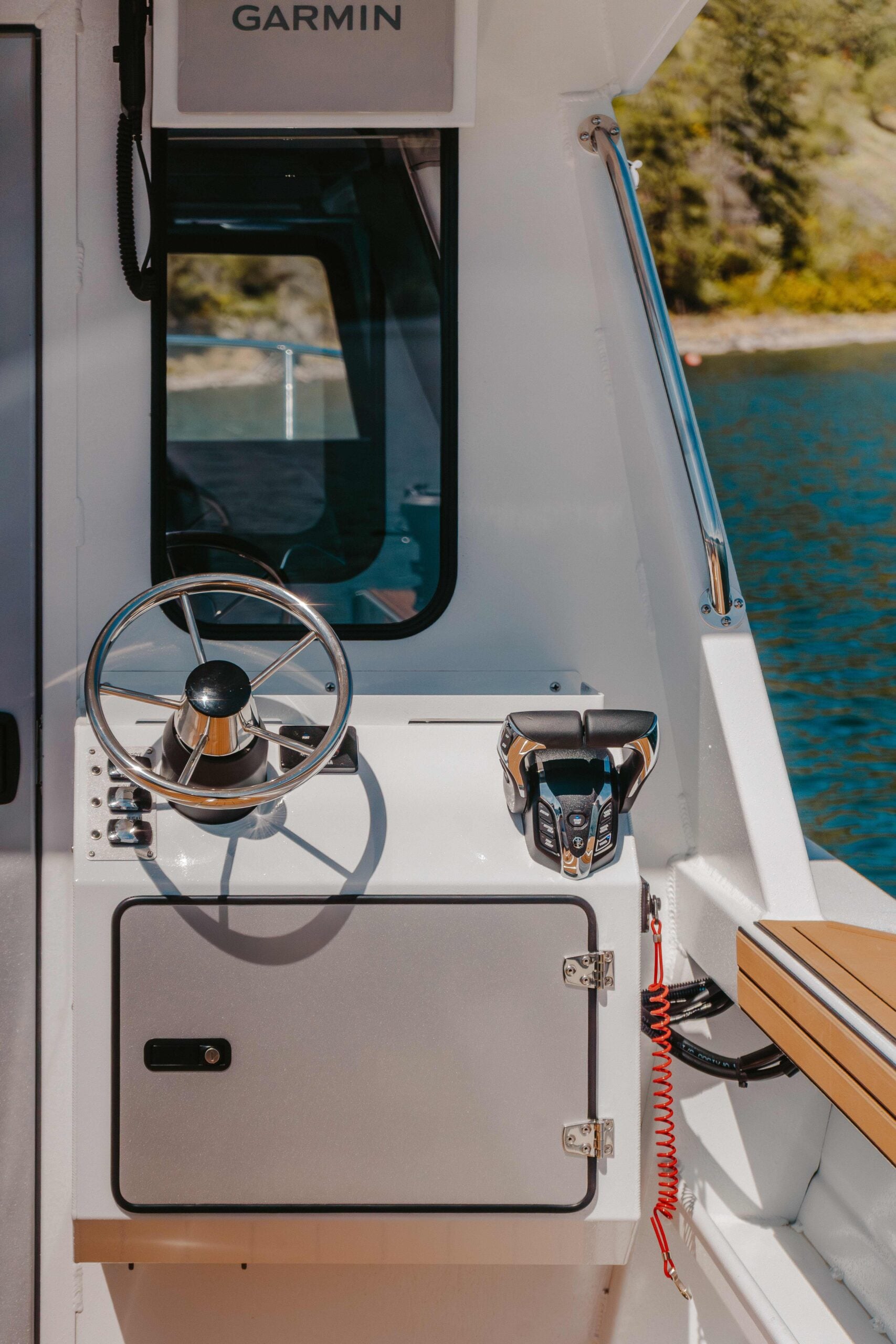

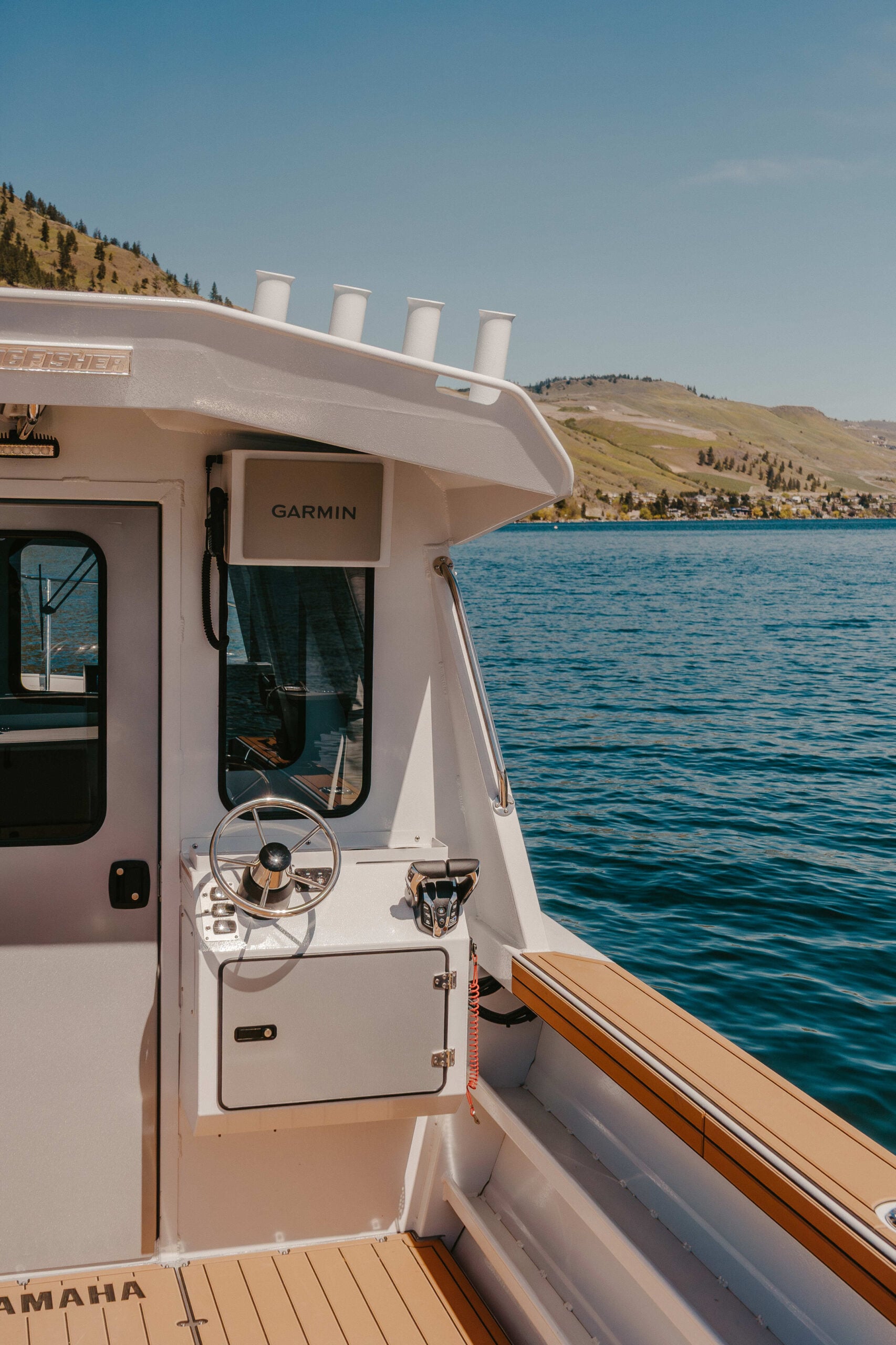

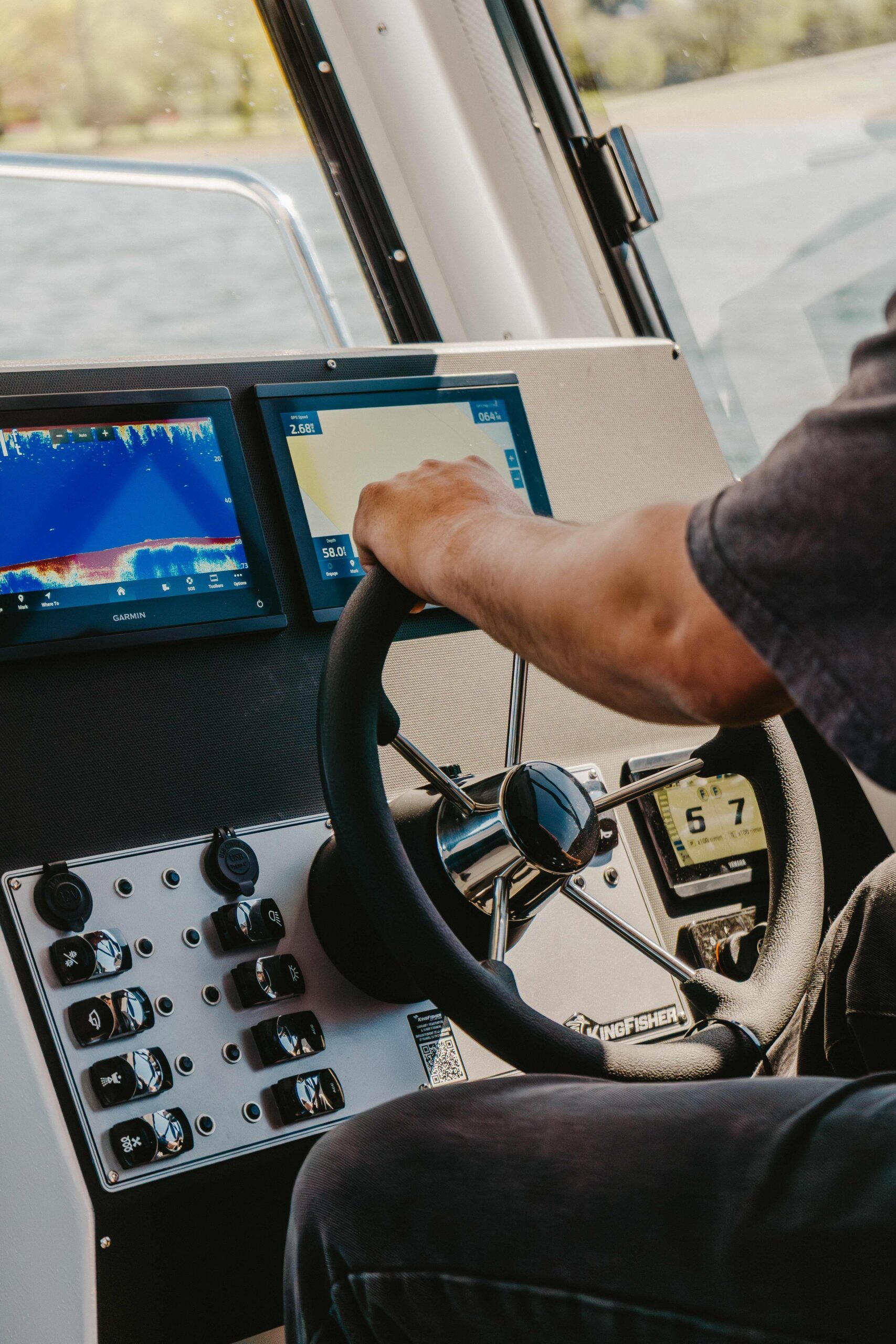

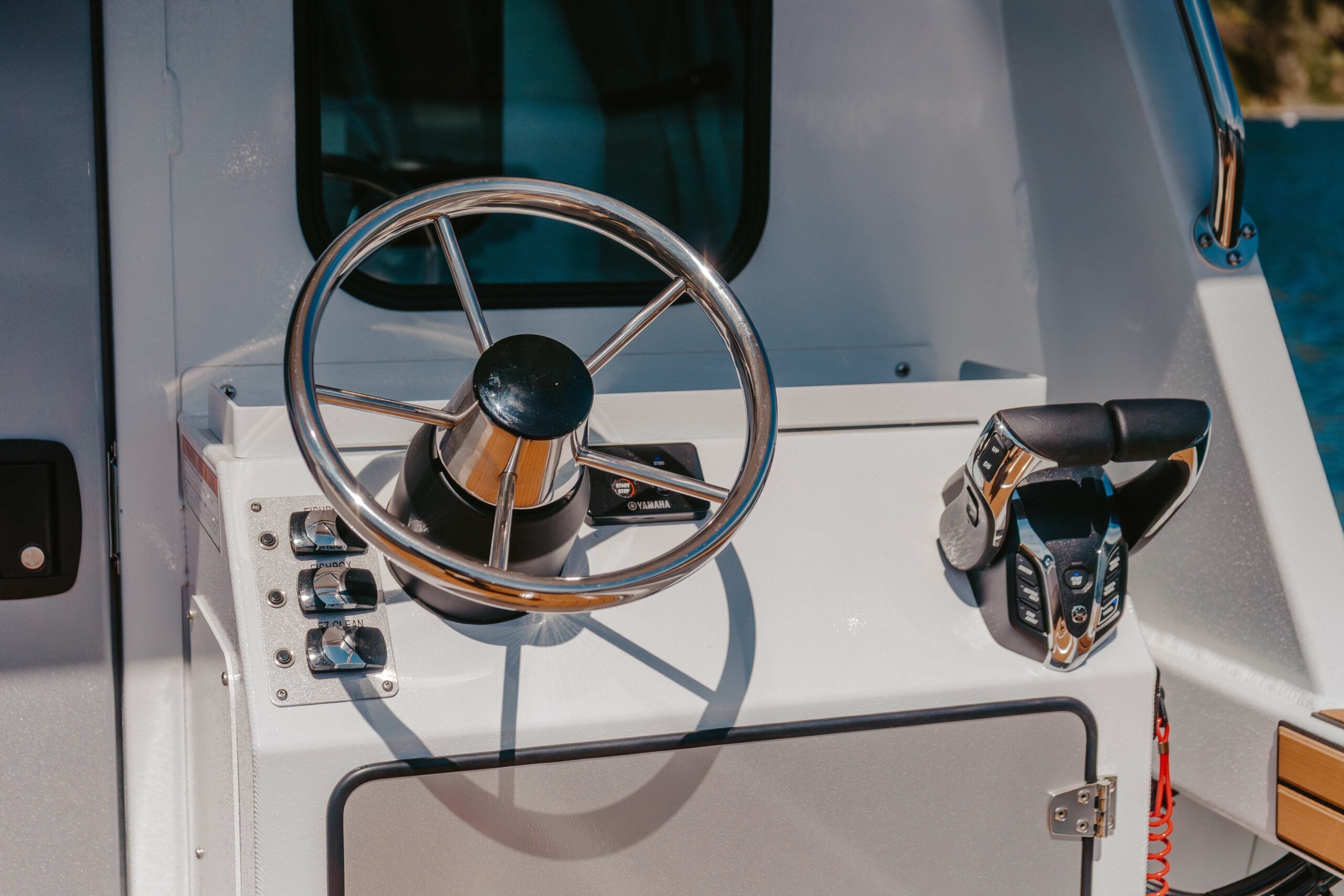

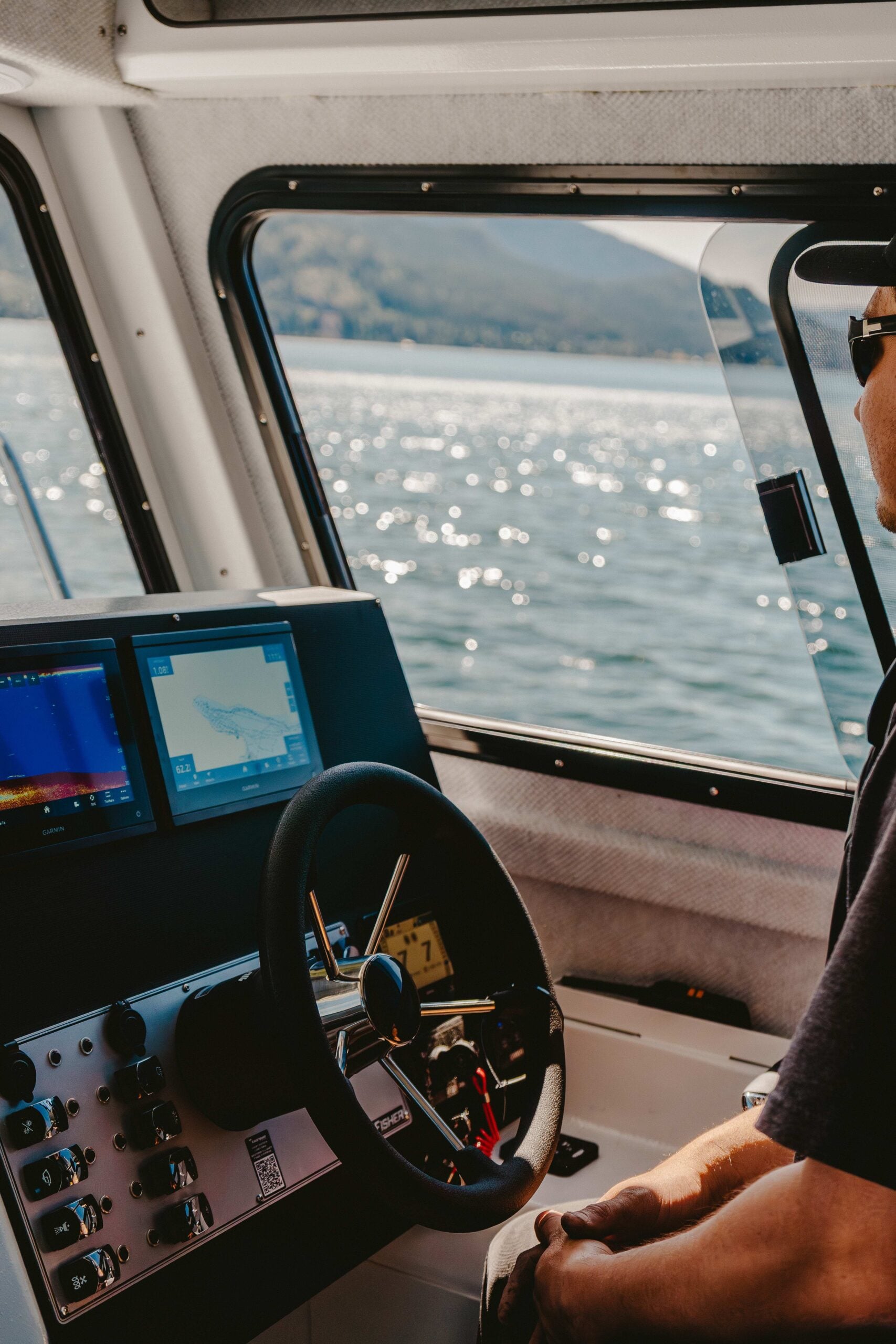

- Hydraulic steering with stainless steel wheel
- Electric fuel gauge
- 12V power point & dual USB outlet
- Navigation lights package
- Electric horn
- Battery isolator switch with buss bar & battery trays
- 2 Electric 1100 gph bilge pumps with auto switch

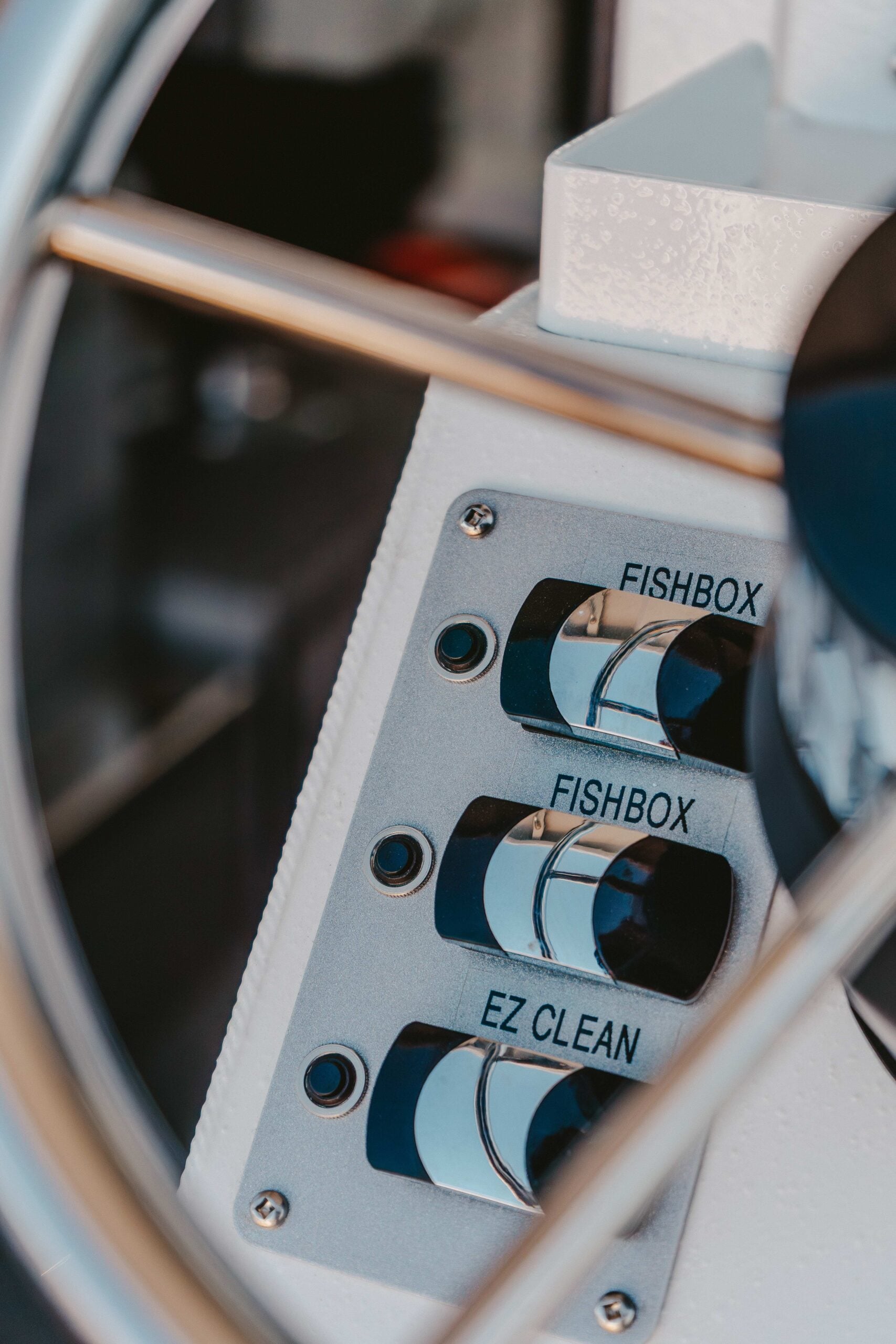

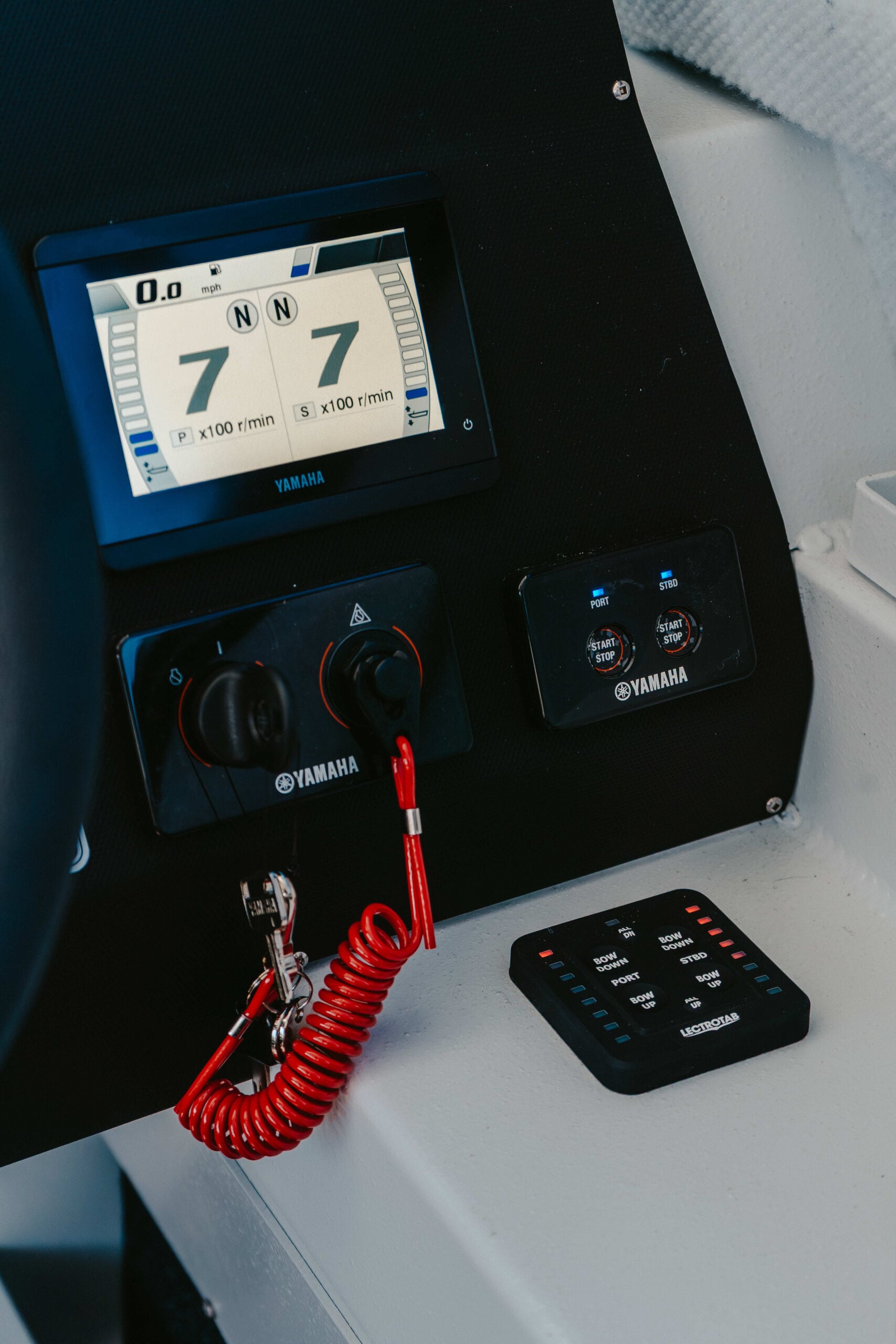

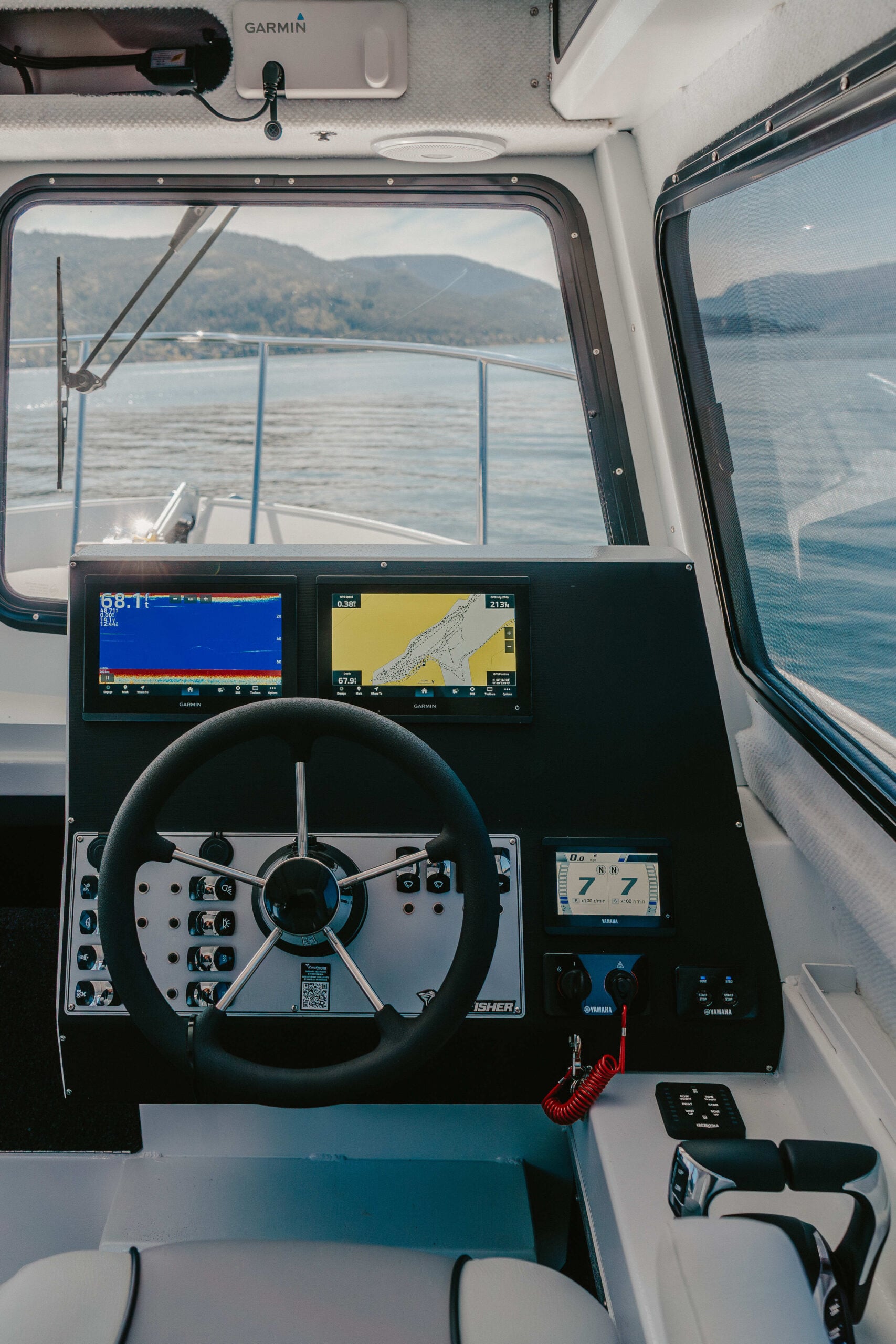

- Premium dash switch panel with resettable circuit breakers
- Interior cabin lighting
- Heavy duty color coded wire harness with water tight connections
- 9″ x 10″ Aluminum trim tabs with indicators

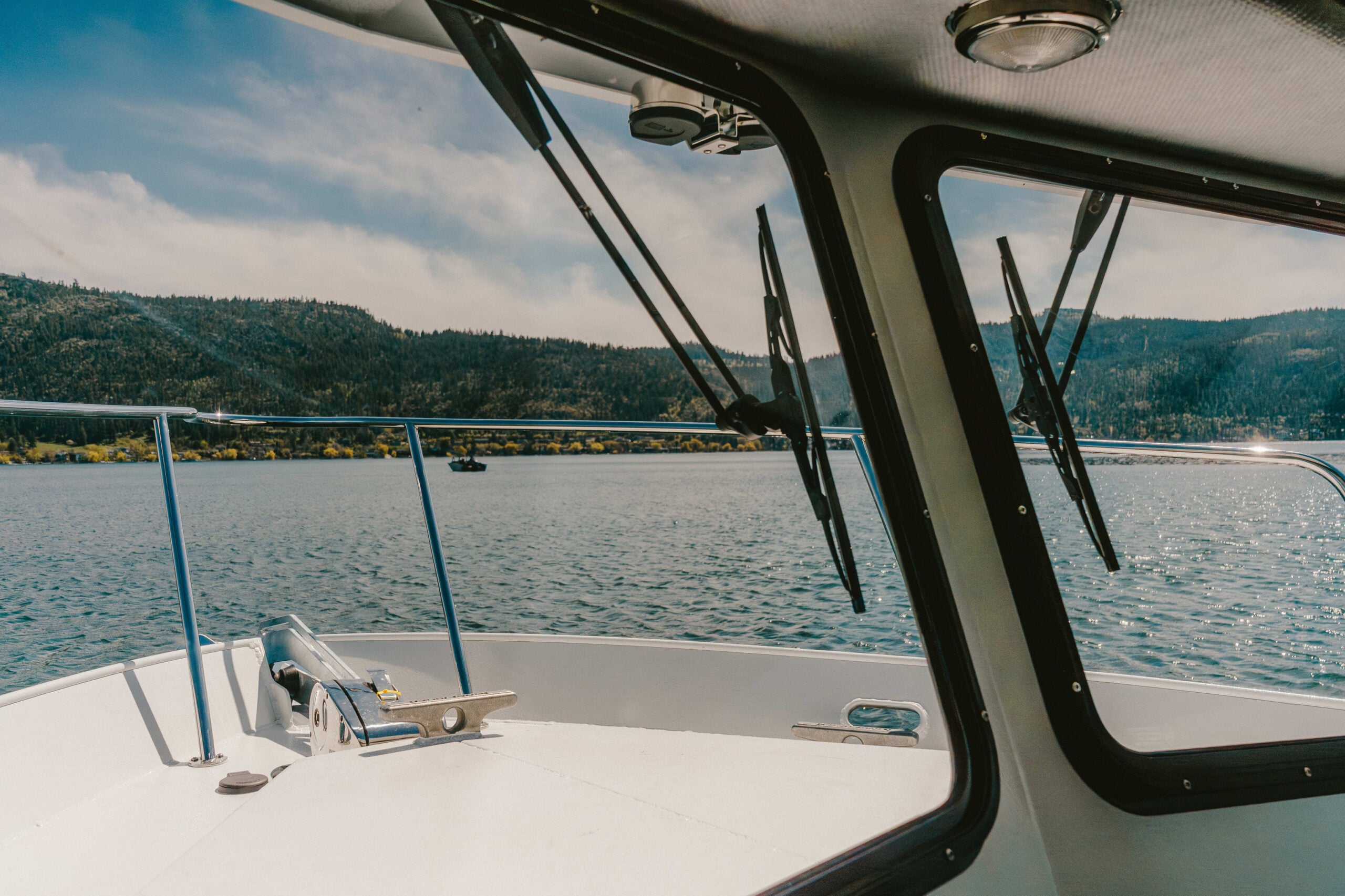

- Port and Starboard Pantographic windshield wipers
Aurora All Weather Package
- Aft cockpit bolster gunnel pads

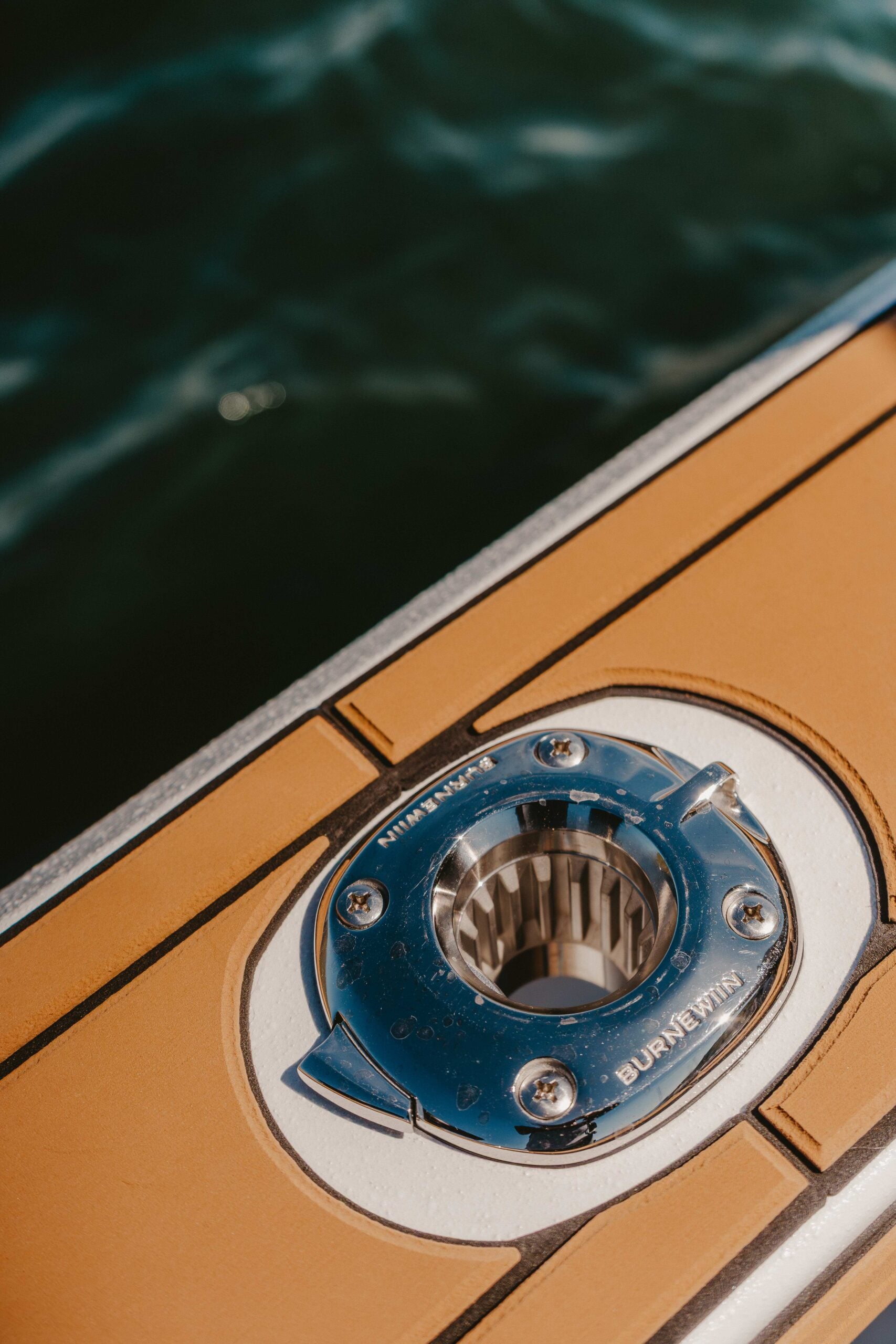

- 8 Rod holders on cabin roof top & starboard fish net holder
- Stainless exterior hard top grab rails & interior roof rail
- High pressure wash down
- Aft cockpit LED decklight
Northwest Interior Package

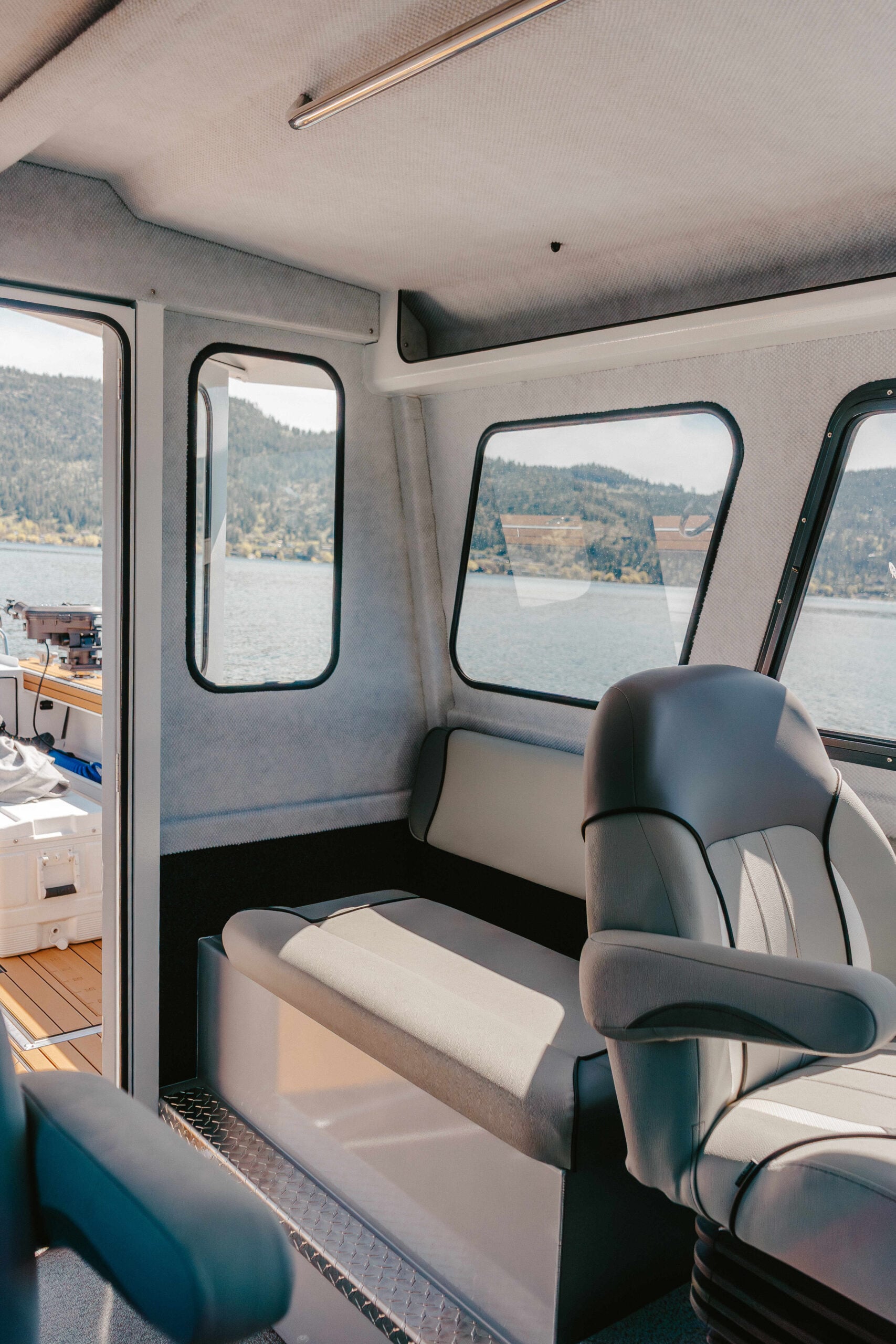

- Port side 42″ painted storage bench seat

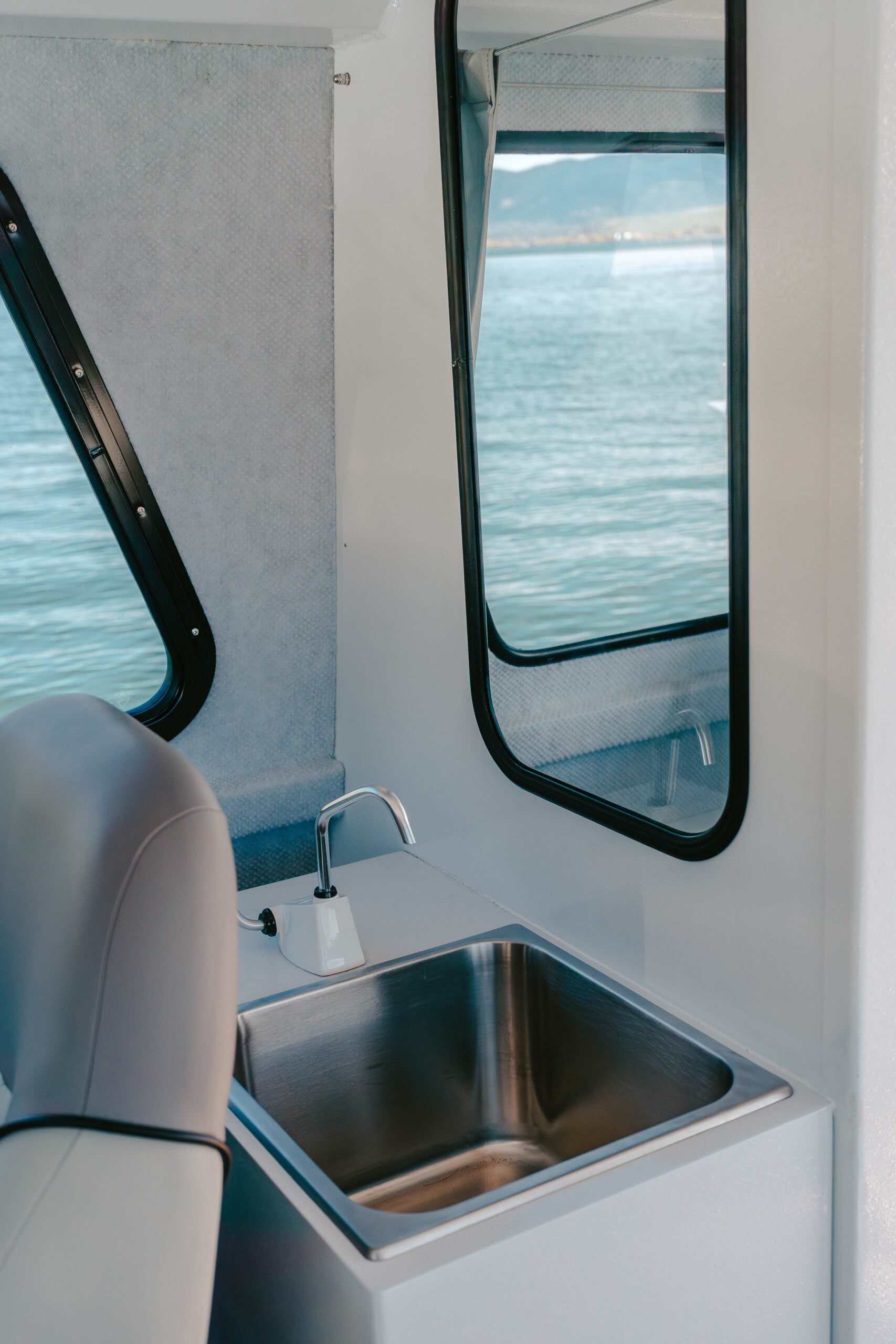

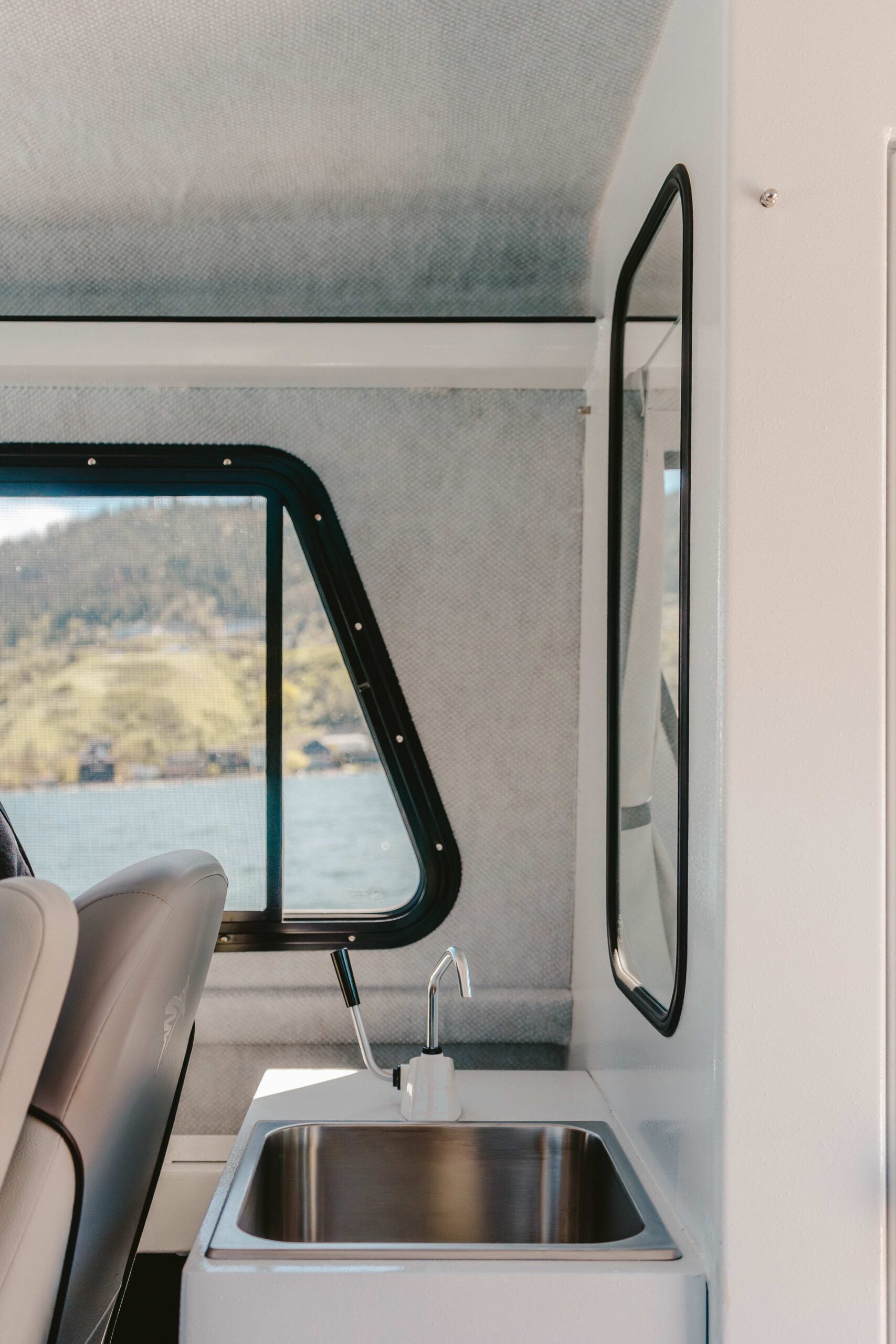

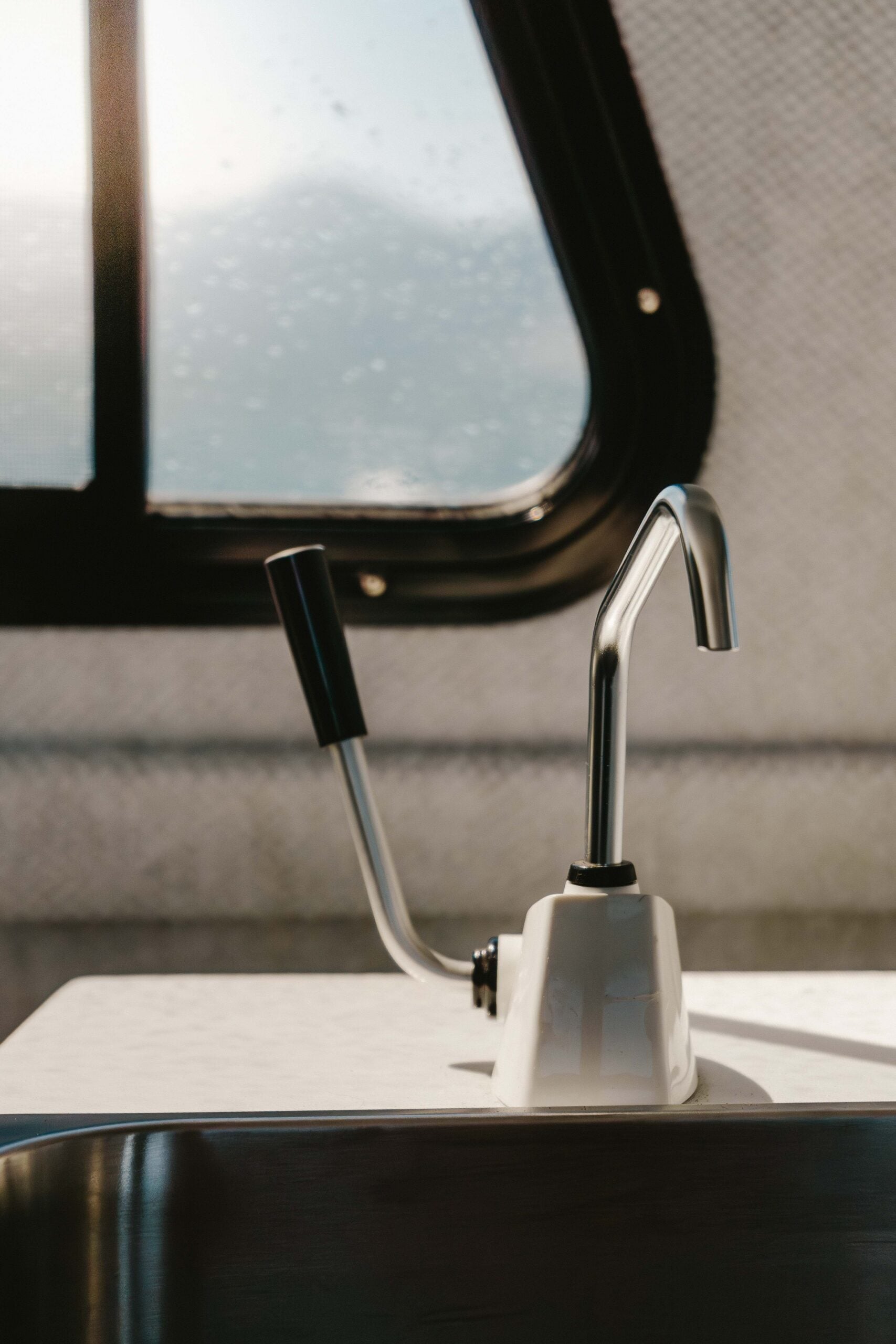

- Starboard side aluminum galley cabinet with stainless sink, 6 gallon fresh water holding tank and manual faucet

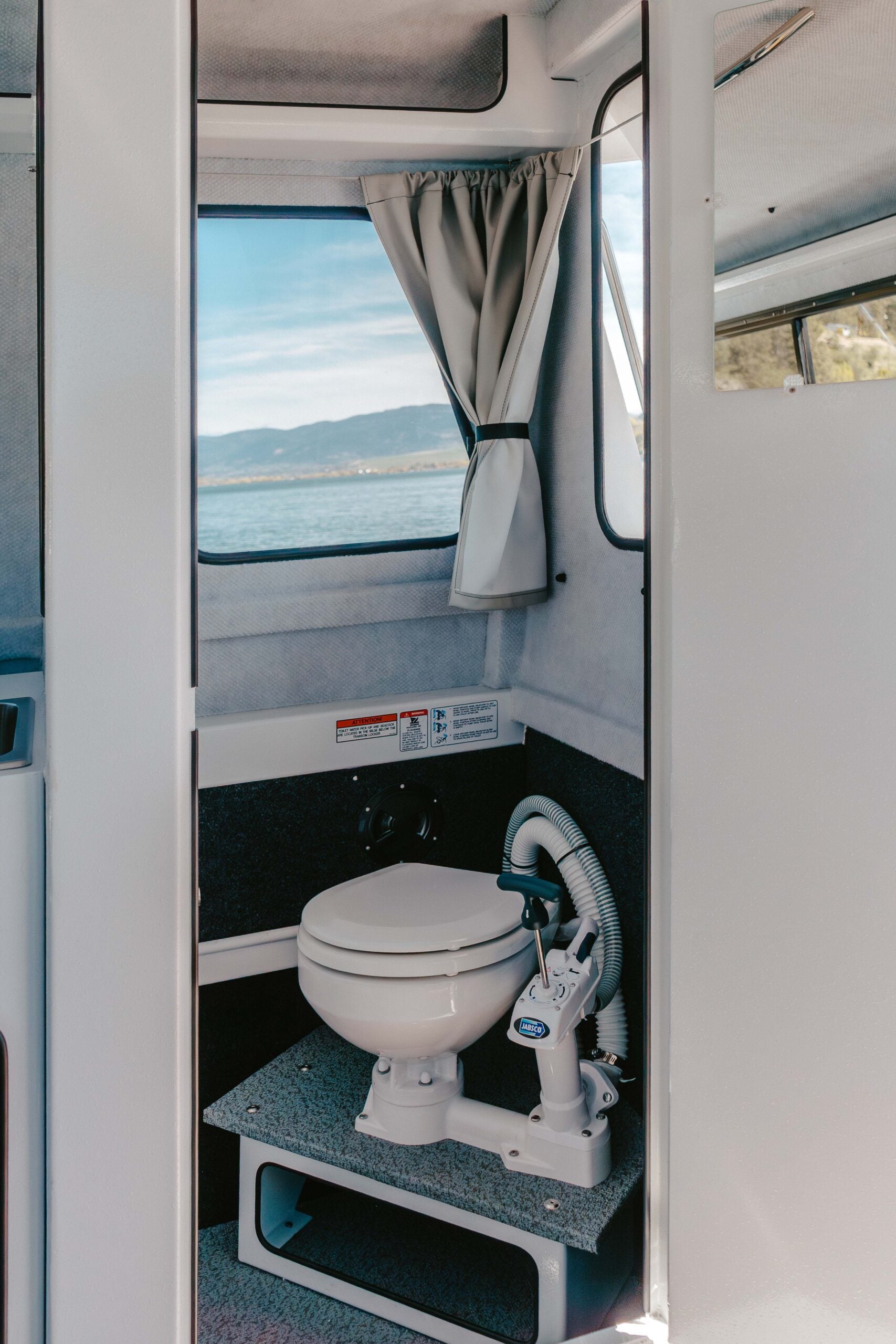

- Standup enclosed head with 10 USG holding tank, flush toilet, macerator pump and deck side clean out
Nightshade Package
- Tinted windows, black window frame and black painted window outline
Garmin Vital Electronics Package

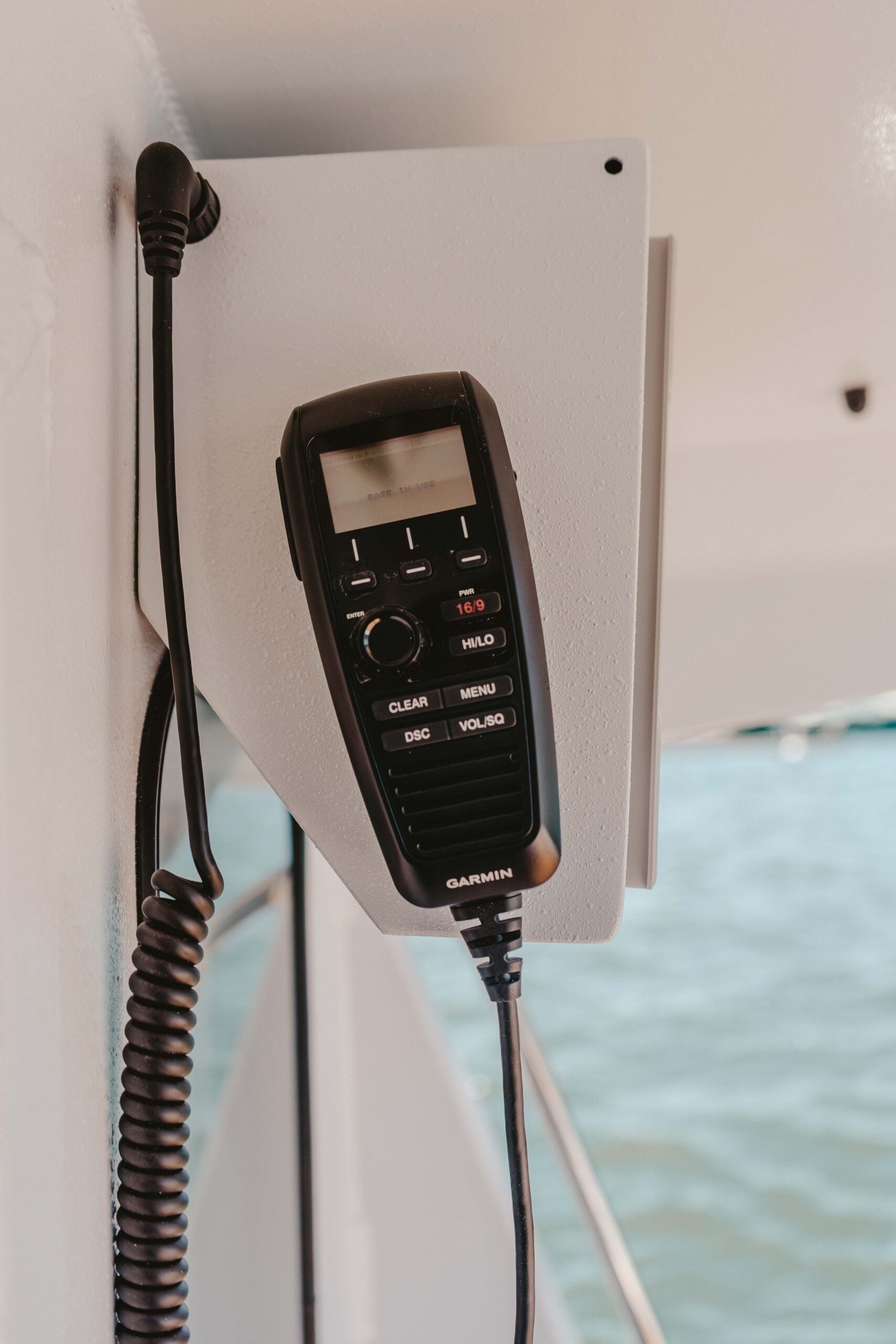

- Including 24″ radar, aluminum radar mast, VHF radio, Sonar, NMEA Network, and specified chartplotter(s) at main helm
- 12″ or 16″ chartplotter or dual 9″ chartplotters
